A Female Dip 180 USB Connector L14.0mm KLS1-181D All Products in USB 2.0 connectors

A Female Dip 180 USB Connector L14.0mm


  Product Images

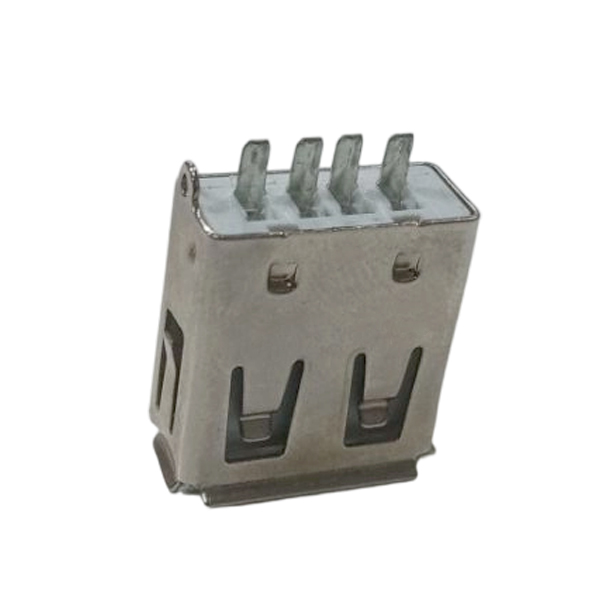

A Female Dip 180 USB Connector L14.0mm


  Product Information
Material:
Housing: Hing Temperature Tnermoplastics, UL94V-0 PBT/LCP, Black/White.
Contact: Copper Alloy C2680.
Shell: Copper Alloy C2680/SPCC.

Finish:
Contact: Piated Gold In Mating Area; Tin On Solder Talls.
Shell: Nickel Plating.

Electrical:
Current Rating: 1.5A/Contact Terminal.
Voltage Rating: 30V DC
Contact Resistance: 30mΩ Max.
Dielectric Withstanding Voltage: 500V AC AT Sea Levol.
Insulation Resistance: 1000MΩ Min.

Mechanical:
Connector Mate and Unmated Force
Mate Force: 3.75kgf Max.
Unmated Force: 1.02kgf Min.
Terminal Retenion: 1.2kgf Min.

Picture Part No. PDF Description Order Qty. Time Order
KLS1-181D-BA Female Dip 180 USB Connector L14.0mm,Black.
KLS1-181D-WA Female Dip 180 USB Connector L14.0mm,White.
