Micro SIM Card Connector;PUSH PUSH,6P+1P Or 8P+1P,H1.50mm KLS1-SIM-090 All Products in Micro SIM card connectors

Micro SIM Card Connector;PUSH PUSH,6P+1P Or 8P+1P,H1.50mm

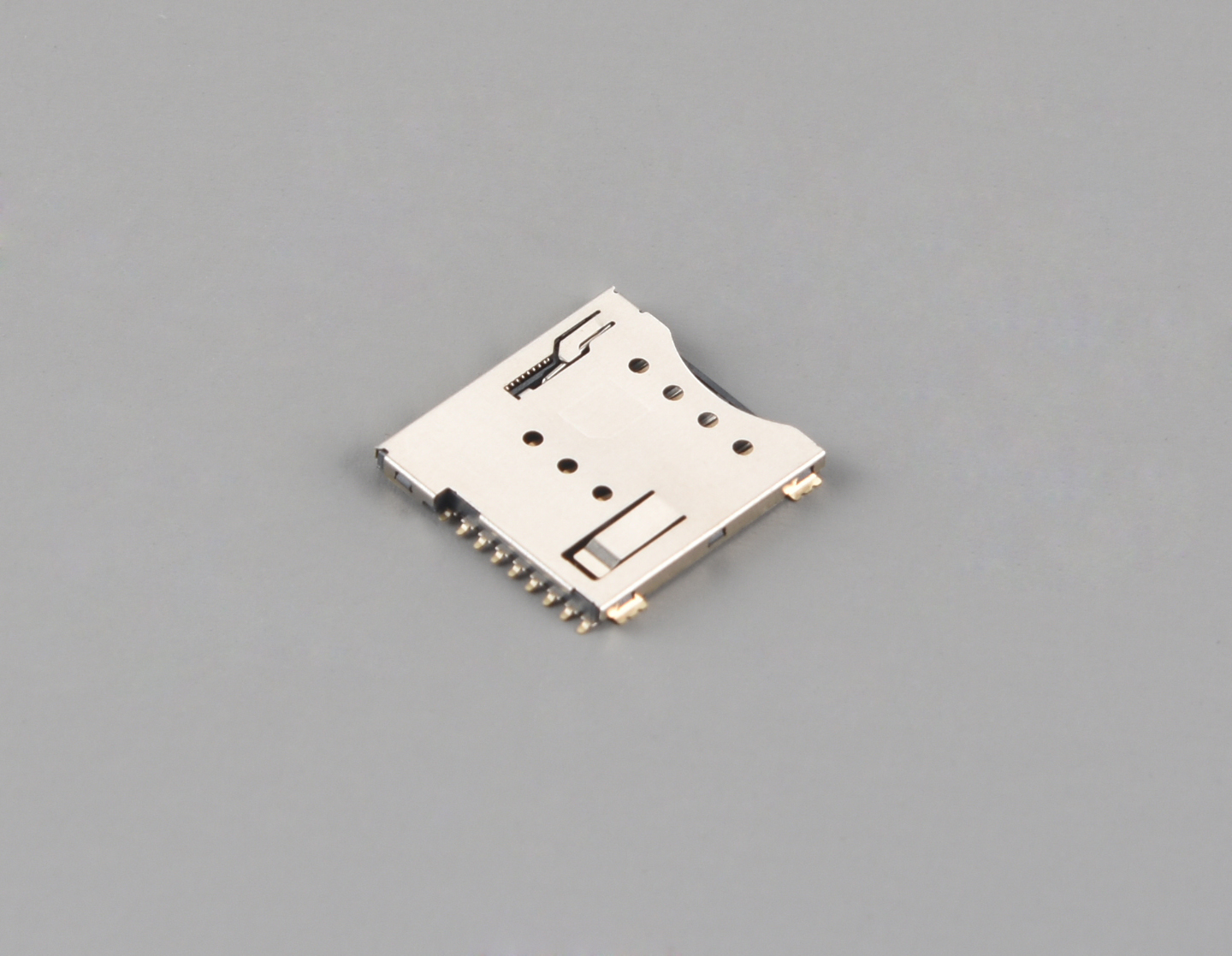

  Product Images
Micro SIM Card Connector;PUSH PUSH,6P+1P Or 8P+1P,H1.50mm Micro SIM Card Connector;PUSH PUSH,6P+1P Or 8P+1P,H1.50mm


  Product Information
Micro SIM Card Connector;PUSH PUSH,6P+1P Or 8P+1P,H1.50mm
Electrical
Current Rating: 0.5A
Voltage Rating:5.0 vrms
Contact resistance:100mΩ  Max.
Insulation resistance:1000M Min.
Withstanding Voltage:250V ACrms For 1 Minute.
Operating TempRange:-45℃-+105℃

Material:
Insulator:Hi-Temperature plastic,UL94V-0,Black
Terminal:Copper Alloy,Gold Flash Plating On All Terminal, And 50u" min nickel underplated on allover.
Shell:Stainless Steel,50u" Nickel underplated on allover,gold flash on solder pad.

Picture Part No. PDF Description Order Qty. Time Order
KLS1-SIM-090-6+1P-H1.5-RMicro SIM Card Connector PUSH-PUSH,6+1 Pins,Height 1.5mm,Roll Pack.
KLS1-SIM-090-8+1P-H1.5-RMicro SIM Card Connector PUSH-PUSH,8+1 Pins,Height 1.5mm,Roll Pack.
