Male Inserts,Contacts 10+PE,Spring connection,16A 250V KLS1-HA-010MS All Products in HA Inserts Series

Male Inserts,Contacts 10+PE,Spring connection,16A 250V


  Product Images

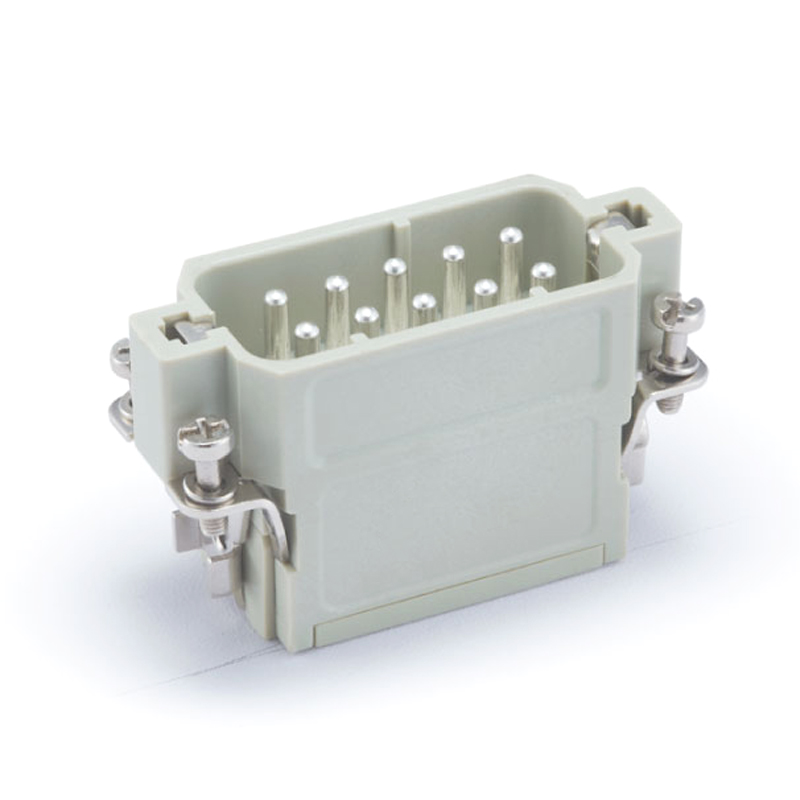

Male Inserts,Contacts 10+PE,Spring connection,16A 250V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.14-2.5mm² (26-14 AWG)
Terminal: Spring terminal

Eletrical Characteristics:
Number of contacts: 10+PE
Rated Current: 16A
Rated Voltage: 250V
Rated lmpulse Voltage: 4KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min
