You are here: Home > Products > Heavy Duty Connectors > Heavy Duty Connector Inserts > HA Inserts Series
Male Inserts,Contacts 3+PE,Screw connection,10A 230/400V KLS1-HA-003M All Products in HA Inserts Series

Male Inserts,Contacts 3+PE,Screw connection,10A 230/400V

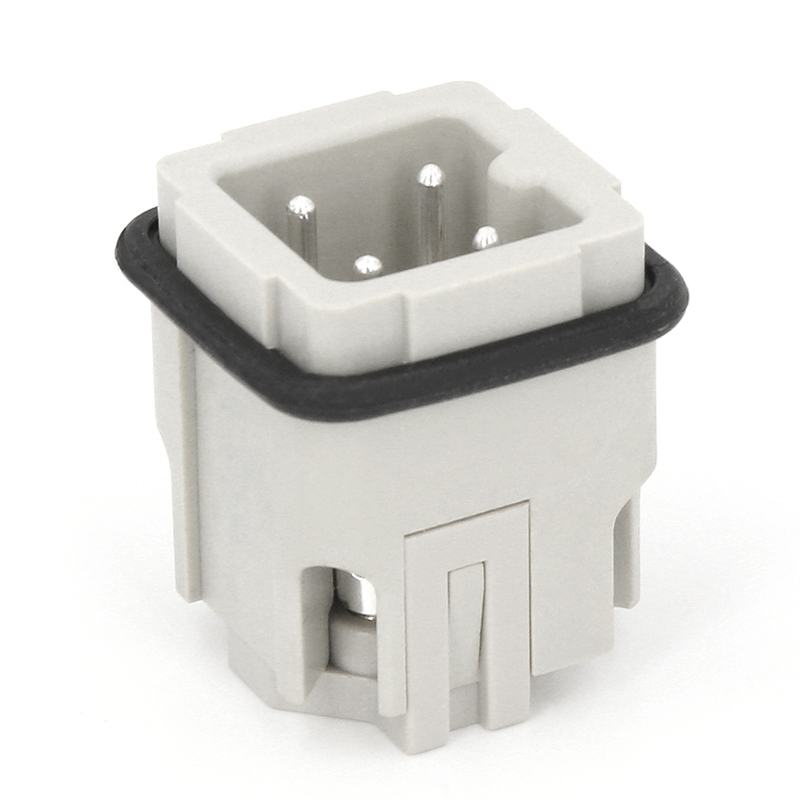

  Product Images
Male Inserts,Contacts 3+PE,Screw connection,10A 230/400V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.75-1.5mm² (18-16 AWG)
Tightening Torque: 0.25N.m
Terminal: Screw terminal

Eletrical Characteristics:
Number of contacts: 3+PE
Rated current: 10A
Rated Voltage-ground: 230V
Rated Voltage-conductor: 400V
Rated lmpulse Voltage: 4KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min
