Male Inserts,Contacts 4+PE,Spring connectionSpring connection (quick),10A 230/400V KLS1-HA-004MQ All Products in HA Inserts Series

Male Inserts,Contacts 4+PE,Spring connectionSpring connection (quick),10A 230/400V

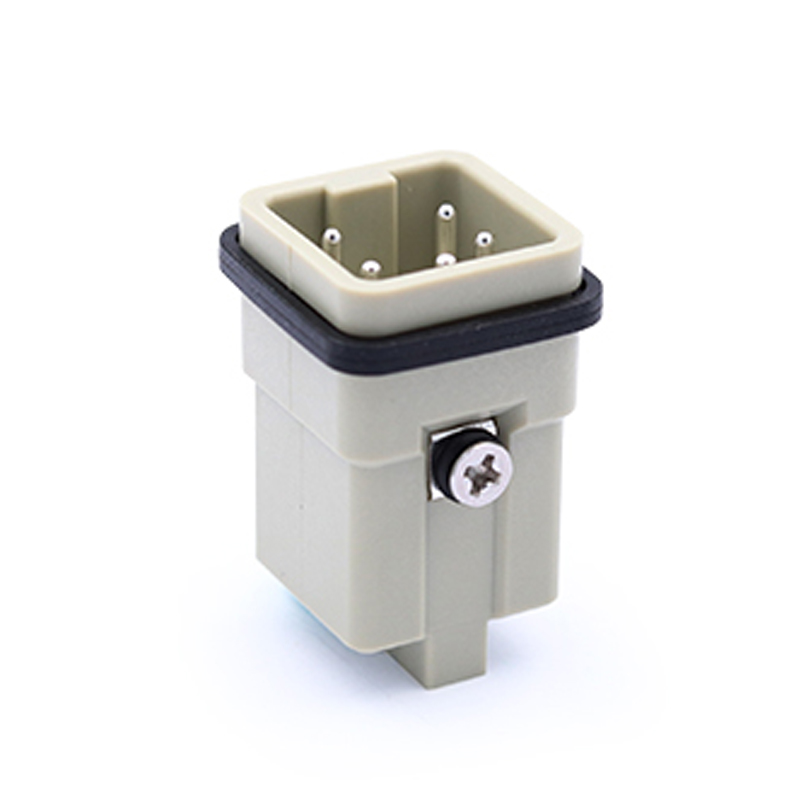

  Product Images
Male Inserts,Contacts 4+PE,Spring connectionSpring connection (quick),10A 230/400V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Co pper Alloy, Hard-silver plated
Wire gauge: 0.14- 2.5mm² (26-14 AWG)
Terminal: Spring terminal (quick connection)

Eletrical Characteristics:
Number of contacts: 4+PE
Rated Current: 10A
Rated Voltage-ground: 230V
Rated Voltage-conductor: 400V
Rated lmpulse Voltage: 4KV
Pollution Degree: 3
Rated voltage Acc.to UL CSA: 600V
Insulation resistance: 1010Ω Min
Contact resistance: 1mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
