H48B High-voltage Housing,Surface mounting,Side entry,Single Locking Latch KLS1-HV48B-SF-1L |
 All Products in 48B Housing |
|
 |

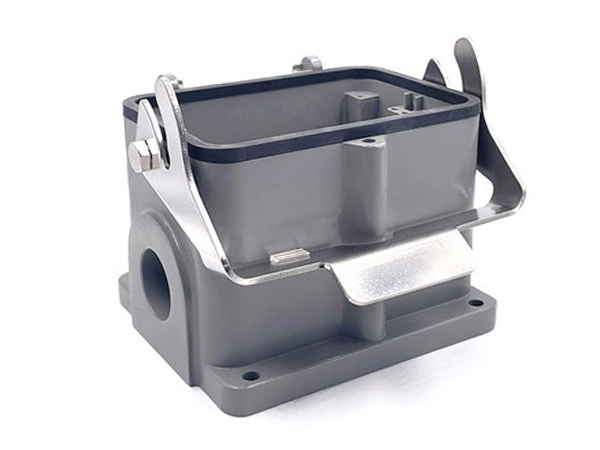

H48B High-voltage Housing,Surface mounting,Side entry,Single Locking Latch
Order Information:
L-KLS1-HV48B-SF-1L(xx)-xx
L: RoHS
HV48B: H48B High-voltage series
Cable entry: SF=Surface mounting, Side entry
Locking type: 1L=1(Single) Locking Latch
xx: C: Plastic cover
MC: Metal cover
Thread Sizes: xx: M32 / 2M32 / M40 / 2M40 / PG29 / 2PG29 / PG36 / 2PG36
Material:
Housing: Aluminium Die-Cast, UL94V-0
Surface: Powder-Coated
Colour: RAL 7037 (Grey)
Hoods / Housings sealing: NBR
Temperatures range: -40℃ ~ +125℃
Degree of protection: IP65 (acc.fo IEC 60529 for coupled Connector)
Locking Element:
Locking Type: Single Locking Latch
Material: Stainless steel
Cable entry: Side entry
No.of Cable Entries: 1 / 2
Thread Sizes: xx: M32 / 2M32 / M40 / 2M40 / PG29 / 2PG29 / PG36 / 2PG36
|
