H48B High-voltage Housing,Bulkhead mounting,Single Locking Latch KLS1-HV48B-BK-1L |
 All Products in 48B Housing |
|
 |

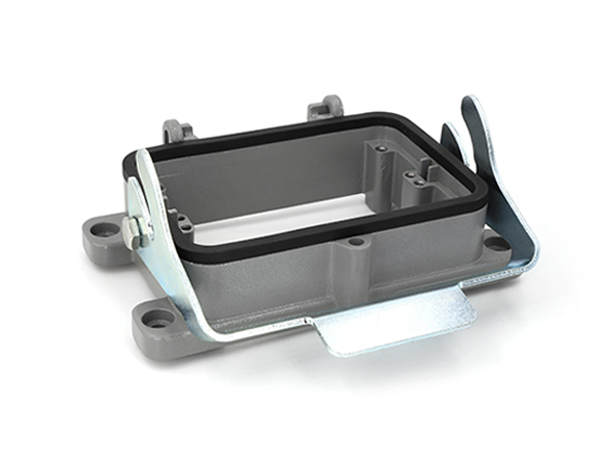

H48B High-voltage Housing,Bulkhead mounting,Single Locking Latch
Order Information:
L-KLS1-HV48B-BK-1L(xx)
L: RoHS
HV48B: H48B High-voltage series
Cable entry: BK=Bulkhead mounting
Locking type: 1L=1(single) Locking Latch
xx: C: Plastic cover
MC: Metal cover
Technical:
Material:
Body: Aluminium die-cast, powder-coated, RAL 7037(grey)
Cover: PC
Hoods / Housings sealing: NBR
Temperature range: -40℃ ~ +125℃
Degree of protection: IP65 (acc.to IEC 60529 for coupled connector)
Cable entry: Bottom entry
Loching element:
Locking type: single locking latch
Material: Stainless steel
|
