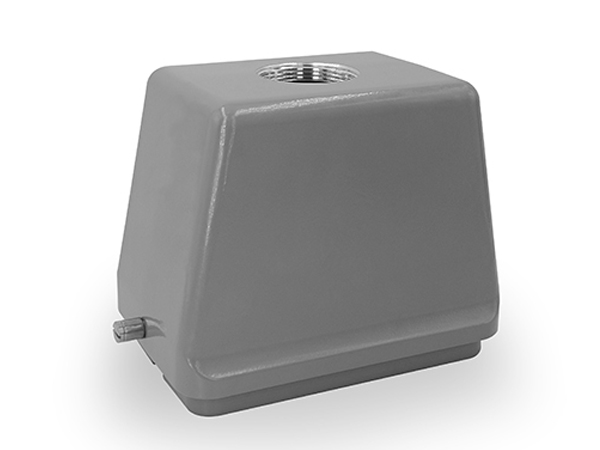

H48B High-voltage Housing,Top entry,With 2 Post
Order Information:
L-KLS1-HV48B-S-2B-xx
L: RoHS
HV48B: H48B High-voltage series
Cable entry: S=Top entry
Post: With 2 Post
Thread sizes: xx: M32 / M40 / M50 / PG29 / PG36 / PG42
Technical:
Material:
Body: Aluminium die-cast, powder-coated, RAL 7037(grey)
Hoods / Housings sealing: NBR
Temperature range: -40℃ ~ +125℃
Degree of profection: IP65 (acc.to IEC 60529 for coupled connector)
Cable entry: Top entry
No.of cable entries: 1
Thread size: M32 / M40 / M50 / PG29 / PG36 / PG42 |
