M12 Plug Male Connector,Right angled,A B D Coding KLS15-M12A-TR5 All Products in M12 circular connectors

M12 Plug Male Connector,Right angled,A B D Coding


  Product Images
M12 Plug Male Connector,Right angled,A B D Coding M12 Plug Male Connector,Right angled,A B D Coding M12 Plug Male Connector,Right angled,A B D Coding M12 Plug Male Connector,Right angled,A B D Coding


  Product Information

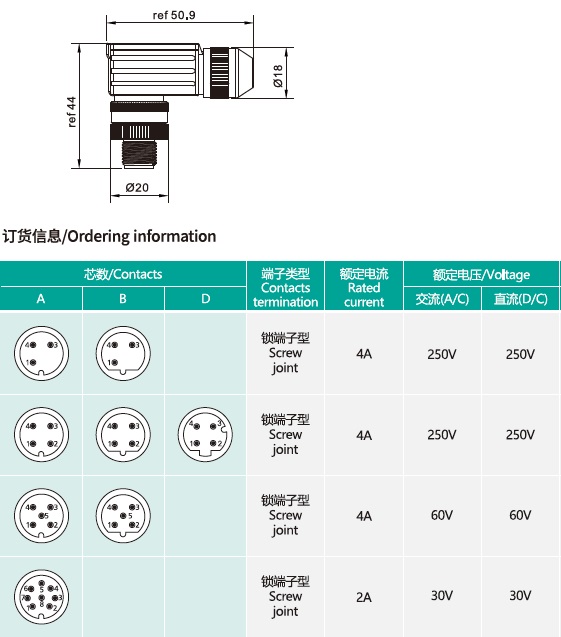

Order information
KLS15-M12A-TR503
M12: Screw type
A: A Coding    B: B Coding    D: D Coding
P3:  Plug Male Pin,Right angled
03:   Number of Contacts 3,4,5,8Pins

Electrical & Mechanical data

Standard: IEC 61076-2-101
Ambient temperature: -25℃ ~ +90℃
Connector insert: TPU
Connector contacts: Brass with gold plated
Connector body: Zinc alloy with nickel plated
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Shielding： Available
Cable gland OD: PG7: 4~6mm, PG9: 6~8mm
IP rating: IP67/IP68 in locked condition
