M12 Female Panel-mount, Solder Type, Rear fastened,A B C D coding （PG9） KLS15-M12A-CB1 All Products in M12 circular connectors

M12 Female Panel-mount, Solder Type, Rear fastened,A B C D coding （PG9）


  Product Images
M12 Female Panel-mount, Solder Type, Rear fastened,A B C D coding （PG9） M12 Female Panel-mount, Solder Type, Rear fastened,A B C D coding （PG9） M12 Female Panel-mount, Solder Type, Rear fastened,A B C D coding （PG9） M12 Female Panel-mount, Solder Type, Rear fastened,A B C D coding （PG9）


  Product Information


Order information
KLS15-M12A-CB103
M12: Screw type
A: A Coding    B: B Coding   D: D Coding
CB1:   Soldering ,Panel mount, Rear lock,Female

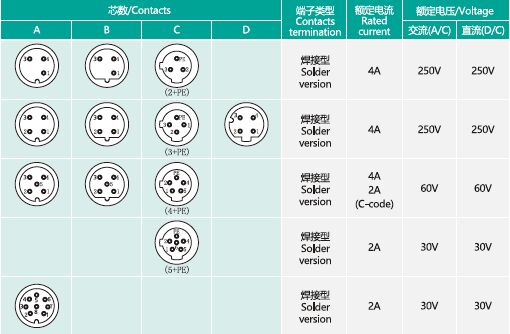

03:  Number of Contacts 3,4,5,6,8Pins

Product data
Contacts Poles: 3,4,5,6,8 Pin
Cable Length: XX
Connector Gender: Female connector
Current Rating: 4A,2A
Wire Gauge (size): 22AWG/ 0.34mm²
Voltage Rating: 250V,60V,30V
Wire Insulation: PVC
Keyway Coding: A Coding,B Coding,C Coding,D Coding
EMC Shielding: Un-shielded
Straight/ 90° Angled: 180° Straight
Contacts Termination: Soldering
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Phosphor bronze, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Inserts: PA66 + GF
Sealing: O-Ring
Housing/ Outer Shell: Brass with nickel plasting
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Panel Cut Size: PG9, M16x1.5
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67, IP 69K
Pollution Degree: III
Connector Flamability: UL94 V0
Waterproof Depth: IP67 1m depth 30 minutes, IP69K against high pressure/ steam jet
Plug Mating Life: 500 times
Warranty: 1-years quality guarantee period
Compliance: RoHS compliant, REACH compliant
Reference Standard: IEC 61076-2-101
Products Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Panel locking side: Rear side fastening the nut
