M12 Plug Male Connector,Right angled,A B D Coding KLS15-M12A-TR2 All Products in M12 circular connectors

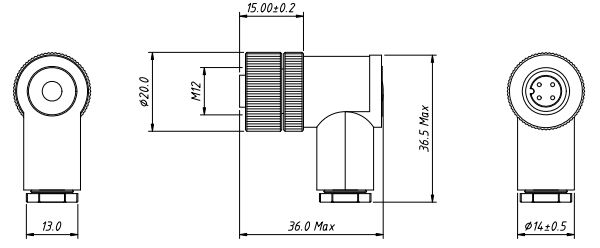

M12 Plug Male Connector,Right angled,A B D Coding


  Product Images
M12 Plug Male Connector,Right angled,A B D Coding M12 Plug Male Connector,Right angled,A B D Coding M12 Plug Male Connector,Right angled,A B D Coding M12 Plug Male Connector,Right angled,A B D Coding

M12 Plug Male Connector,Right angled,A B D Coding M12 Plug Male Connector,Right angled,A B D Coding M12 Plug Male Connector,Right angled,A B D Coding


  Product Information





Order information
L-KLS15-M12A-TR203PG7
Screw type: M12
X: A=A Code    B=B Code   D=D Code
TR2: Plug Female Pin, Right angled
Number of Contacts: 02P 03P 04P 05P 06P 07P 08P
Cable outlet: PG7 or PG9

Material:
Housing: PA66+GF, Specify Color
Contact: Brass, Gold Plated
Nut: Brass, Nickl Plated
Nut: PA66+GF, Specify Color
Shell: PA66+GF, Specify Color

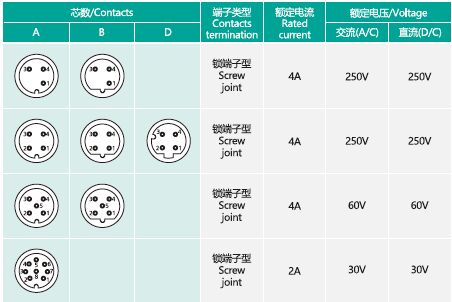

Electrical:
Rated volage: 2-5pin: 60V
                        6-8pin: 30V
Rated current: 2-5pin: 4A
                        6-8pin: 2A
Insulation resistance: 1000MΩ Min
Contact Resistance: 10mΩ Max
Operation Tenperature: -40℃ ~ +105℃
Engagement force: 50N Max
Disengagement force: 5N Min
Life: 500 Cycles Min
IP rating: IP67/IP68
Flamability: UL94 V-0

Picture Part No. PDF Description Order Qty. Time Order
