Features:

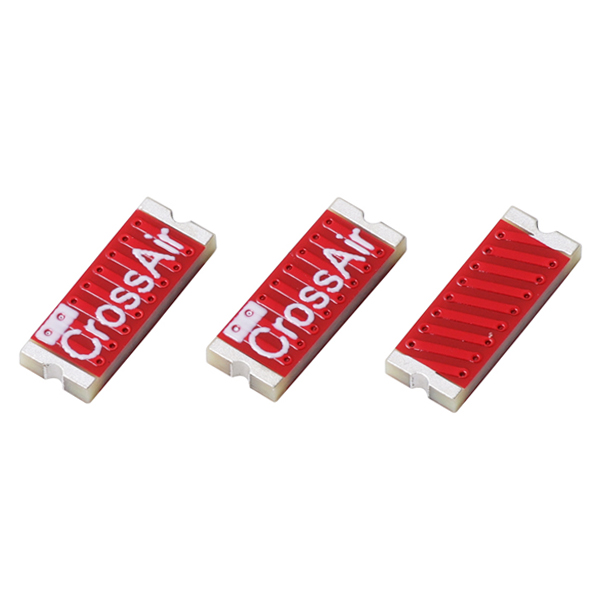

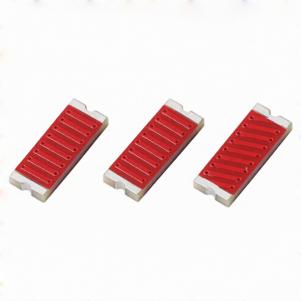

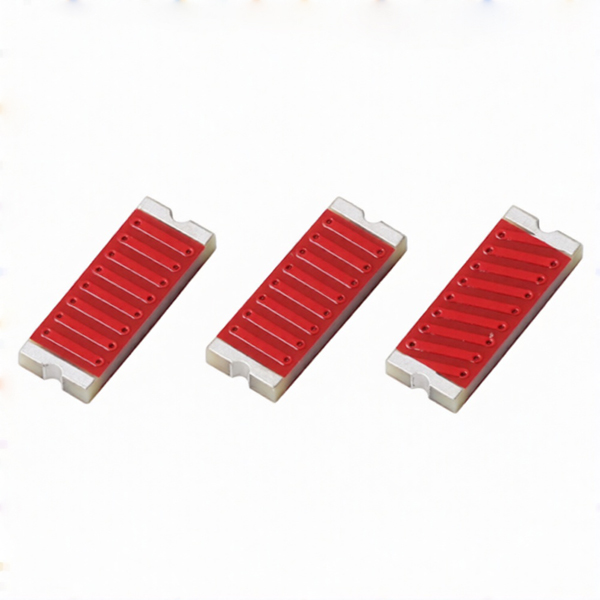

1.Surface Mounted Devices with a small dimension of 8.0 × 3.0 × 1.0 mm³ meet miniaturization trend.
2. Low power loss and high antenna efficiency.
3. High stability in Temperature and Humidity Change.
Electrical Characteristics:
Specification
Working Frequency Range
1.575±40MHz
Fc(GHz)
1.8GHz
Band Width
>80MHz
Impedance
50Ω
Gain(dBi)
4.7
VSWR
<2
Operation Temperature(℃)
-40℃ ~ +85℃
Power Capacity
3W
The working frequency need be adjusted to 1.575GHz with matching circuit.
