Electrical Specification:
| Standards |
GPS L1+L5& GLONASS & Galileo |
| Frequency range(MHz) |
1176.45MHz |
1575.42MHz |
1602.56MHz |
| Peak Gain (dBi) |
2.7 |
2.5 |
2.8 |
| Average Gain (dB) |
-1.8 |
-1.4 |
-1.2 |
| VSWR |
1.29 |
1.19 |
1.18 |
| Return Loss |
-17.87 |
-21.10 |
-21.73 |
| Efficiency (%) |
65.5 |
72.1 |
75.5 |
| Polarization mode |
Linear |
Linear |
Linear |
| Radiation pattern |
Omni-Directional |
Omni-Directional |
Omni-Directional |
| Output impedance (Ω) |
50 |
50 |
50 |
| Max. Input Power(W) |
5 |
5 |
5 |
Note: All parameters are measured with KLS's EVK which size is 110*50mm

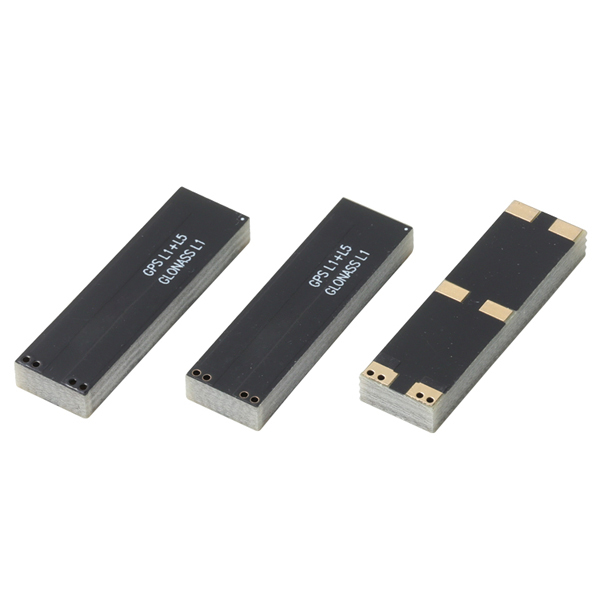

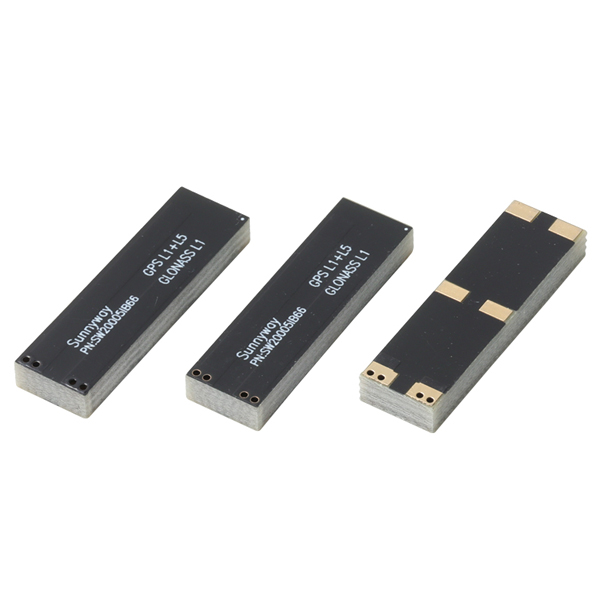

Mechanical and Environmental Specification:
| Mounting Type |
SMD |
| Antenna size(mm) |
26.0 (L) x7.65 (W) x3.0 (H) |
| Material |
PCB |
| Operating Temperature (℃) |
-40℃ ~ +85℃ |
| Storage Temperature(℃) |
-40℃ ~ +85℃ |
|
