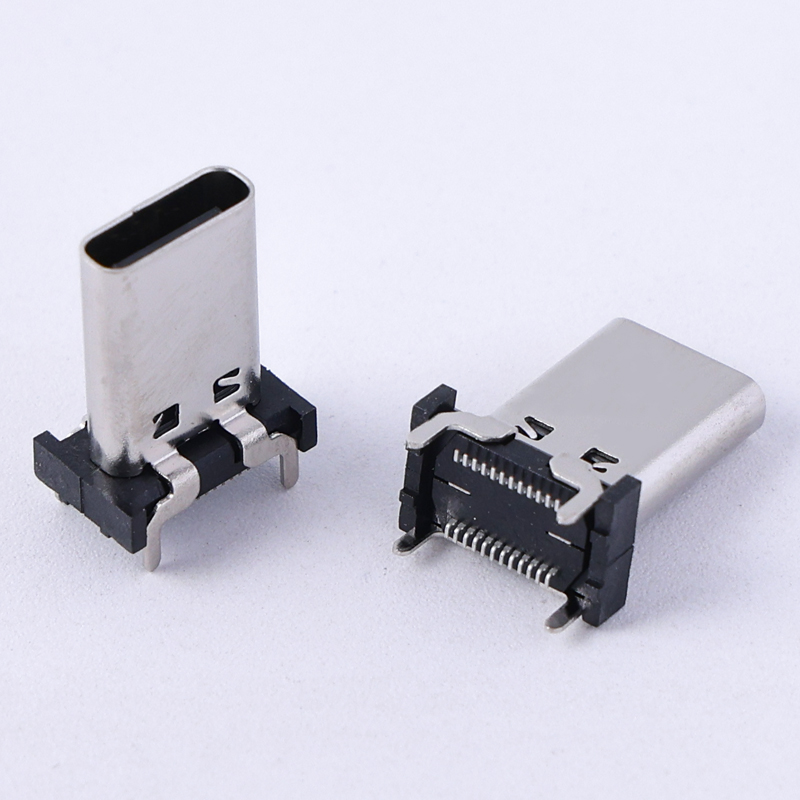

24P L=10.45mm with cap USB 3.1 type C connector female socket
NOTES:
1.Material:
1-1.Contacts: C7025
1-2.Shell: SUS304
1-3.Mid Plate&GND Plate: SUS301
1-4.InsertMolding: LCP E6808,UL94V-0,Black
1-5.Cover: LCP E6808,UL94V-0,Black
2.Plating Specification:
2-1.Contacts: Au Plated On The Functional Area Of Contact
Matt Tin Plated On The Solder Area
2-2.Shell: Ni 30u" Min Under Plated Over All
3.Mechanical:
3-1.Insertion Force: 0.5~2.0kgf
3-2.Removal Force: 0.8kgf~2.0kgf,0.6kgf~2.0kgf(After Test)
3-3.Durability: 10000 Cycles
4.Electrical:
4-1.Contact Resistance: 40mOHM Max
4-2.Dielectric Withstanding Voltage: 100V AC For 1Minute
4-3.Insulation Resistance: 100M OHM Min |
