M24 Push pull Waterproof Fiber optic connectors,IP67,Doble mode KLS15-WFOC-03B All Products in Waterproof Fiber optic connectors

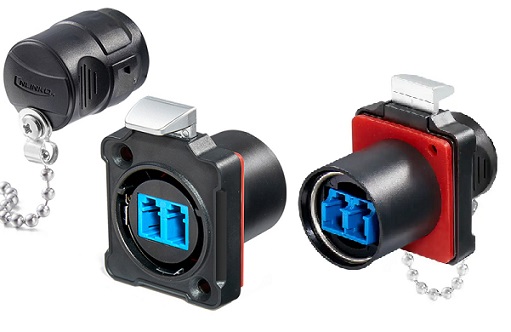

M24 Push pull Waterproof Fiber optic connectors,IP67,Doble mode


  Product Images
M24 Push pull Waterproof Fiber optic connectors,IP67,Doble mode M24 Push pull Waterproof Fiber optic connectors,IP67,Doble mode M24 Push pull Waterproof Fiber optic connectors,IP67,Doble mode M24 Push pull Waterproof Fiber optic connectors,IP67,Doble mode


  Product Information
M24 Push pull Waterproof Fiber optic connectors,IP67,Doble mode

Material:
Plug Housing:PBT
Socket Housing:PBT
Body: High performance engineering plastics  UL94-V0/Zinc alloy
Contact: Phosphor bronze,gold plated
Sealing: silica gel

Electrical Characteristics:
Insertion loss :  0.7db
Retum loss : 65db
Mechanical life : 500 times min
Humiture Temperature :- 20
~+85;humidity≤85%
Vibration Frequency : 5~200Hz
Amplitude:5mm,speed:10m/s
Salt spray :  PH6.5~7.2
NaCI,5% 48H

Waterproof level:  IP67
Life: 500 cycles Min.
Operating Temperature: -40ºC~+80ºC

Adapter wire gauge:
wire gauge:26~24AWG    /   0.15~0.2mm2
OD:5.0~7mm

TYPE SIZE Cable lenght ORDERING
1M,3M
5M,8M,10M.....
P1
S1

Picture Part No. PDF Description Order Qty. Time Order
