Externally driven piezo buzzer,Top sound
Resonance Frequency : 3.5±0.5KHz
Max.Allowable Voltage: 30 Vp-p
Rated Voltage: 12 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 4mA Max.at Rated Voltage
Sound Pressure Level: 80dB Min at Rated Voltage at 10cm
Electrostatic Capacity: 1500±30% pF
Operating Temp: -40~+85°C
Weight: 3g
Housing Material: PPO

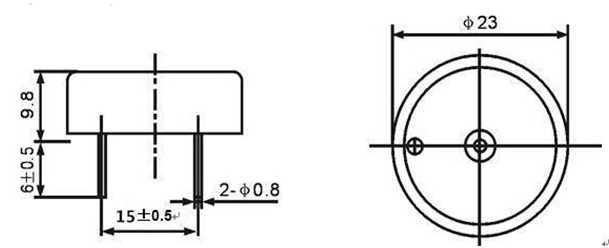

Size:
| Order Code |
Operating Voltage |
Resonant Frequency |
Max.Rated Current |
Min.S.P.L.（@10cm） |
Rated Voltage |
| KLS3-PT-23*10-A |
30Vp-p |
3.5±0.5KHz |
3.5mA |
95dB |
5Vp-p |
| KLS3-PT-23*10-B |
30Vp-p |
3.5±0.5KHz |
4mA |
95dB |
12Vp-p |
|
