Externally driven piezo buzzer,Top sound
Resonance Frequency : 4.0±0.5KHz
Max.Allowable Voltage: 25 Vp-p
Rated Voltage: 9 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 3mA Max.at Rated Voltage
Sound Pressure Level: 80dB Min at Rated Voltage at 10cm
Electrostatic Capacity: 1400±30% pF
Operating Temp: -40~+85°C
Weight: 1.0g
Housing Material: PPO

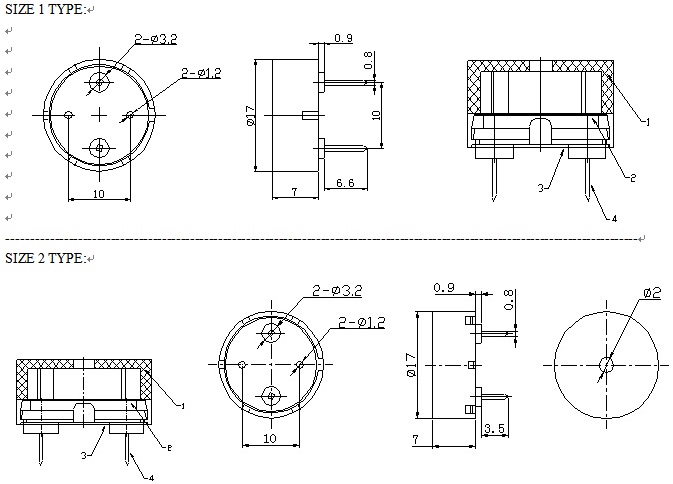

Size:
| Order Code |
Operating Voltage |
Resonant Frequency |
Max.Rated Current |
Min.S.P.L.（@10cm） |
Rated Voltage |
| KLS3-PT-17*08-A |
1...25Vp-p |
4.0±0.5KHz |
1mA |
80dB |
5Vp-p |
| KLS3-PT-17*08-B |
1...25Vp-p |
4.0±0.5KHz |
3mA |
80dB |
9Vp-p |
|
