Aluminum waterproof breathable valve
Order information:
KLS8-VA03M1201-00
Thread:M5X0.8,M6X1.0,M8X1.25,M10X1.5,M12X1.5,M16X1.5,M20X1.5,M25X1.5,M32X1.5,M40X1.5
Thread:G1/8,G1/4,G3/8,G1/2,G5/8,G3/4,G7/8,G1,G1 1/8,G1 1/4,G1 1/2,G1 3/4,G2
Thread:NPT1/16,NPT1/8,NPT1/4,NPT3/8,NPT1/2,NPT3/4,NPT1,NPT1 1/4,NPT1 1/2,NPT2

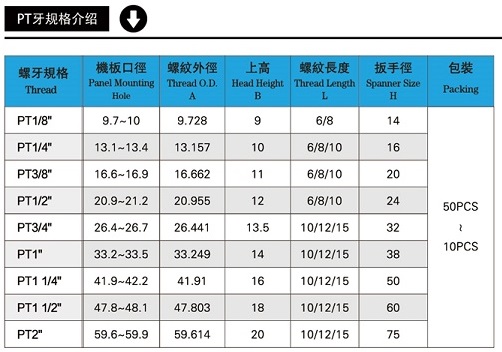

Thread:PT1/8,PT1/4,PT3/8,PT1/2,PT3/4,NPT1,PT1 1/4,PT1 1/2,PT2
Thread:PG7,PG9,PG11
Color: 1-Black 2-White
Nut: 0-With nut 1-Without nut
Material
Nut and Body Material: Aluminum
Film: EPTFE
Sealing: NBR, EPDM
IP rating: IP67
Thread: M12×1.5
Panel Mounting: M12×1.5
Temp. Range: -40 ° C ~ + 120 ° C
breathable valve Range: 300ml/minute Max
Maximum torque:8Kgf.cm Max.
