Brass waterproof breathable valve
Order information:
KLS8-VA21A-M12X1.5-2-0-B6-L8

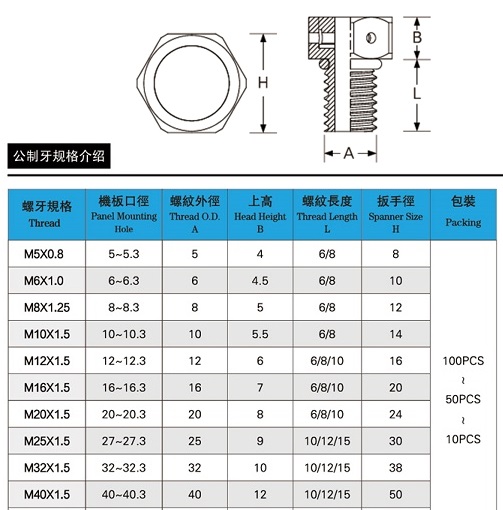

Thread:M5X0.8,M6X1.0,M8X1.25,M10X1.5,M12X1.5,M16X1.5,M20X1.5,M25X1.5,M32X1.5,M40X1.5
Color: 1-Black 2-White
Nut: 0-With nut 1-Without nut
Size:B6-6mm L8-8mm （Other sizes can be ordered）
Material
Nut and Body Material: Brass,Nickel plated
Film: EPTFE
Sealing: NBR, EPDM
IP rating: IP67
Thread: M5 ~M40
Panel Mounting: ∅5 ~∅40
Temp. Range: -40 ° C ~ + 110 ° C
breathable valve Range: 150~3500ml/min/@70mbar
|
