Male Inserts,Contacts 12+PE,Crimp connection,16A 830V KLS1-HVE-012MC All Products in HVE Inserts Series

Male Inserts,Contacts 12+PE,Crimp connection,16A 830V

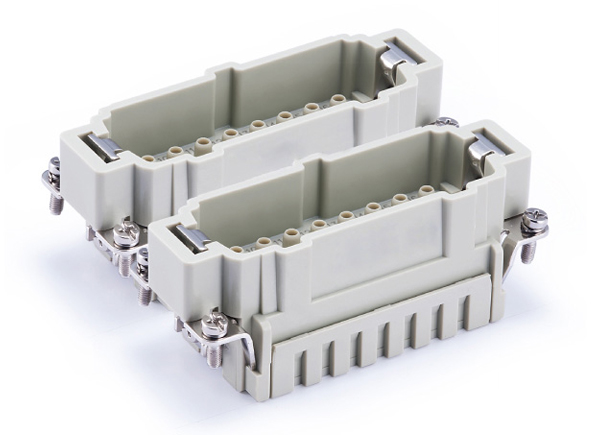

  Product Images
Male Inserts,Contacts 12+PE,Crimp connection,16A 830V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.14-4.0mm² (26-12 AWG)
Stripping Length: 7.5mm
Terminal: Crimp terminal
Tools:
  Crimp Contact Tool:
    TL02G (0.5~4 mm²)
    TL02(0.14~0.37 mm²)
  Conatct Removal Tool: TL01

Electrical Characteristics:
Number of contacts: 12+PE
Rated Current: 16A
Rated Voltage: 830V
Rated Impulse Voltage: 8KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Relay Contacts: 250V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min
