Female Inserts,Contacts 20+PE,Screw connection,16A 830V KLS1-HVE-020F All Products in HVE Inserts Series

Female Inserts,Contacts 20+PE,Screw connection,16A 830V

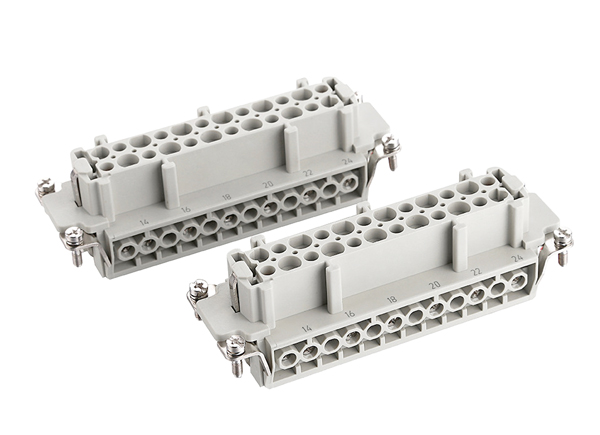

  Product Images
Female Inserts,Contacts 20+PE,Screw connection,16A 830V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 1.0-2.5mm² (18-14 AWG)
Tightening Torque: 0.5N.m
Stripping Length: 7.0mm
Terminal: Screw terminal

Electrical Characteristics:
Number of contacts: 20+PE
Rated Current: 16A
Rated Voltage: 830V
Rated Impulse Voltage: 8KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Relay Contacts: 250V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min
