Male Inserts,Contacts 32+PE,Crimp connection,16A 500V KLS1-HEE-032MC All Products in HEE Inserts Series

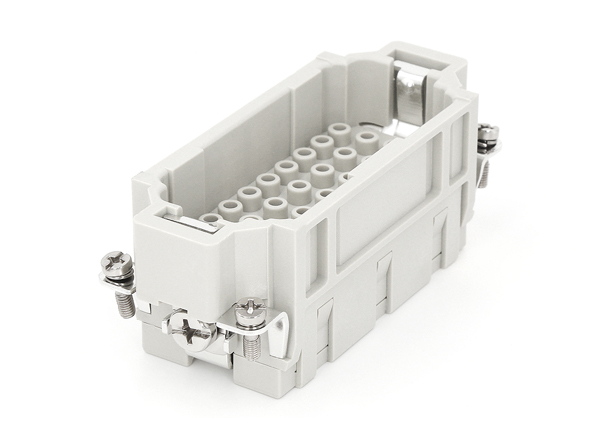

Male Inserts,Contacts 32+PE,Crimp connection,16A 500V


  Product Images
Male Inserts,Contacts 32+PE,Crimp connection,16A 500V Male Inserts,Contacts 32+PE,Crimp connection,16A 500V Male Inserts,Contacts 32+PE,Crimp connection,16A 500V Male Inserts,Contacts 32+PE,Crimp connection,16A 500V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                 Hard-gold plated
Wire gauge: 0.14-4.0mm² (26-12 AWG)
Stripping Length: 7.5mm
Terminal: Crimp terminal
Tools:
  Crimp Contact Tool:
    TL02G (0.5~4 mm²)
    TL02(0.14~0.37 mm²)
  Conatct Removal Tool: TL01

Electrical Characteristics:
Number of contacts: 32+PE
Rated Current: 16A
Rated Voltage: 500V
Rated Impulse Voltage: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
