Female Inserts,Contacts 46+PE,Spring connection,16A 500V KLS1-HEE-046FQ All Products in HEE Inserts Series

Female Inserts,Contacts 46+PE,Spring connection,16A 500V

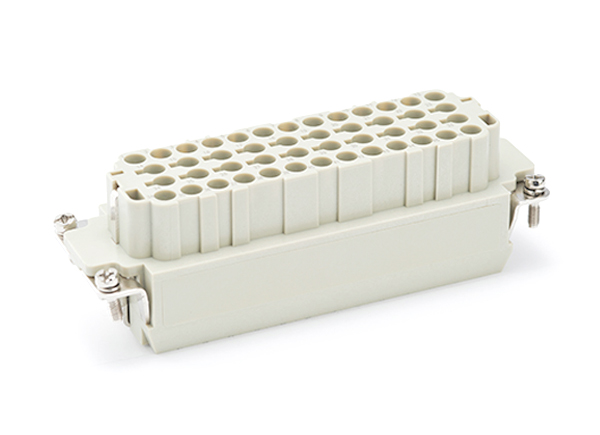

  Product Images
Female Inserts,Contacts 46+PE,Spring connection,16A 500V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.5-2.5mm² (20-14 AWG)
Stripping Length: 9mm
Terminal: Spring terminal

Electrical Characteristics:
Number of contacts: 46+PE
Rated Current: 16A
Rated Voltage: 500V
Rated Impulse Voltage: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40℃ ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
