Male Inserts,Contacts 6+PE,Screw connection,16A 500V KLS1-HEAV-006MR & KLS1-HEAV-006ML All Products in HEAV Inserts Series

Male Inserts,Contacts 6+PE,Screw connection,16A 500V

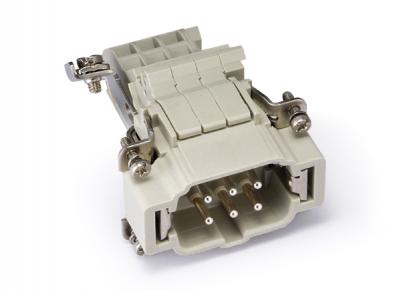

  Product Images
Male Inserts,Contacts 6+PE,Screw connection,16A 500V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                 Hard-gold plated
Wire gauge: 0.2-2.5mm² (24-14 AWG)
Tightening Torque: 0.5N.m
Cage clamp terminal: 0.14-2.5mm² (26-14 AWG)
Terminal: Screw terminal

Eletrical Characteris tics:
Number of contacts: 6+PE
Rated current: 16A
Rated Voltage: 500V
Rated lmpulse Voltage: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 4mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min
