Female Inserts,Contacts 24+PE,Spring connection(quick),16A 500V KLS1-HEAV-024-FQR & KLS1-HEAV-024-FQL All Products in HEAV Inserts Series

Female Inserts,Contacts 24+PE,Spring connection(quick),16A 500V


  Product Images

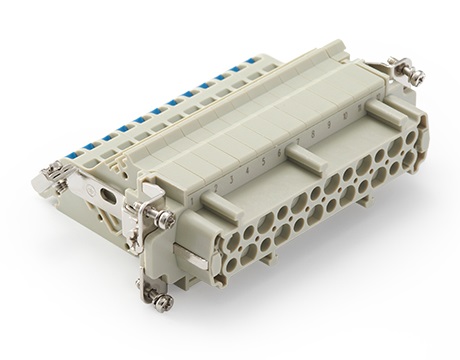

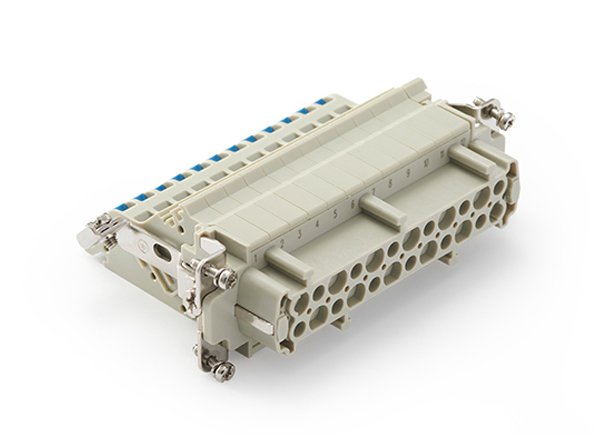

Female Inserts,Contacts 24+PE,Spring connection(quick),16A 500V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.5-4mm² (20-12 AWG)
                     For wires with crimped ferrule: 0.14-2.5mm² (26-14 AWG)
Tightening Torque: 0.5N.m
Stripping length: 10±0.5mm
Terminal: Spring terminal (quick connection)

Eletrical Characteris tics:
Number of contacts: 24+PE
Rated current: 16A
Rated Voltage: 500V
Rated lmpulse Voltage: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 4mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

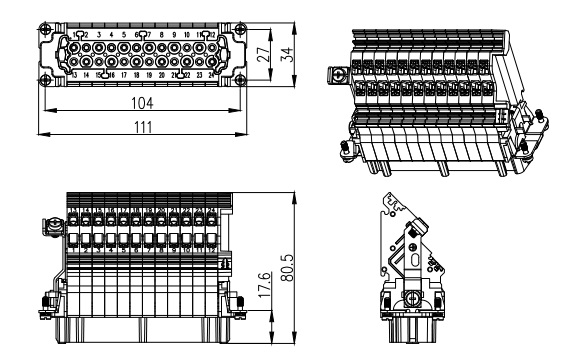

KLS1-HE-024-FQ.AV.R

----------------------------------------------------------------------------------------------

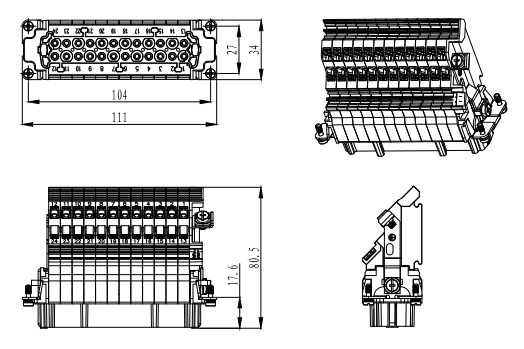

KLS1-HE-024-FQ.AV.L

Picture Part No. PDF Description Order Qty. Time Order


  Related Products

Male Inserts,Contacts 6+PE,Screw connection,16A 500V
Male Inserts,Contacts 6+PE,Screw connection,16A 500V
KLS1-HEAV-006MR & KLS1-HEAV-006ML
Male Inserts,Contacts 6+PE,Spring connection(quick),16A 500V
Male Inserts,Contacts 6+PE,Spring connection(quick),16A 500V
KLS1-HEAV-006MQR & KLS1-HEAV-006MQL
Female Inserts,Contacts 6+PE,Spring connection(quick),16A 500V
Female Inserts,Contacts 6+PE,Spring connection(quick),16A 500V
KLS1-HEAV-006FQR & KLS1-HEAV-006FQL
Female Inserts,Contacts 10+PE,Spring connection(quick),16A 500V
Female Inserts,Contacts 10+PE,Spring connection(quick),16A 500V
KLS1-HEAV-010-FQR & KLS1-HEAV-010-FQL

Male Inserts,Contacts 10+PE,Spring connection(quick),16A 500V
Male Inserts,Contacts 10+PE,Spring connection(quick),16A 500V
KLS1-HEAV-010-MQR & KLS1-HEAV-010-MQL
Male Inserts,Contacts 16+PE,Spring connection(quick),16A 500V
Male Inserts,Contacts 16+PE,Spring connection(quick),16A 500V
KLS1-HEAV-016-MQR & KLS1-HEAV-016-MQL
Female Inserts,Contacts 16+PE,Spring connection(quick),16A 500V
Female Inserts,Contacts 16+PE,Spring connection(quick),16A 500V
KLS1-HEAV-016-FQR & KLS1-HEAV-016-FQL
Male Inserts,Contacts 24+PE,Spring connection(quick),16A 500V
Male Inserts,Contacts 24+PE,Spring connection(quick),16A 500V
KLS1-HEAV-024-MQR & KLS1-HEAV-024-MQL

Female Inserts,Contacts 6+PE,Screw connection,16A 500V
Female Inserts,Contacts 6+PE,Screw connection,16A 500V
KLS1-HEAV-006FR & KLS1-HEAV-006FL
Male Inserts,Contacts 10+PE,Screw connection,16A 500V
Male Inserts,Contacts 10+PE,Screw connection,16A 500V
KLS1-HEAV-010-MR & KLS1-HEAV-010-ML
Female Inserts,Contacts 10+PE,Screw connection,16A 500V
Female Inserts,Contacts 10+PE,Screw connection,16A 500V
KLS1-HEAV-010-FR & KLS1-HEAV-010-FL
Male Inserts,Contacts 16+PE,Screw connection,16A 500V
Male Inserts,Contacts 16+PE,Screw connection,16A 500V
KLS1-HEAV-016-MR & KLS1-HEAV-016-ML

Female Inserts,Contacts 16+PE,Screw connection,16A 500V
Female Inserts,Contacts 16+PE,Screw connection,16A 500V
KLS1-HEAV-016-FR & KLS1-HEAV-016-FL
Male Inserts,Contacts 24+PE,Screw connection,16A 500V
Male Inserts,Contacts 24+PE,Screw connection,16A 500V
KLS1-HEAV-024-MR & KLS1-HEAV-024-ML
Female Inserts,Contacts 24+PE,Screw connection,16A 500V
Female Inserts,Contacts 24+PE,Screw connection,16A 500V
KLS1-HEAV-024-FR & KLS1-HEAV-024-FL
