Female Inserts,Contacts 16+PE,Spring connection(quick),16A 500V KLS1-HE-016FQP All Products in HE Inserts Series

Female Inserts,Contacts 16+PE,Spring connection(quick),16A 500V

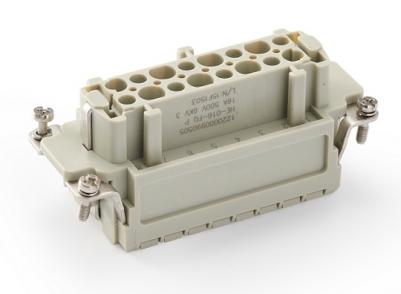

  Product Images
Female Inserts,Contacts 16+PE,Spring connection(quick),16A 500V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.5-4mm² (20-12 AWG)
Tightening Torque: 0.5N.m
Terminal: Spring terminal (quick connection)

Eletrical Characteris tics:
Number of contacts: 16+PE
Rated current: 16A
Rated Voltage: 500V
Rated lmpulse Voltage: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
