Male Inserts,Contacts 48+PE,Screw connection,16A 500V KLS1-HE-048M All Products in HE Inserts Series

Male Inserts,Contacts 48+PE,Screw connection,16A 500V

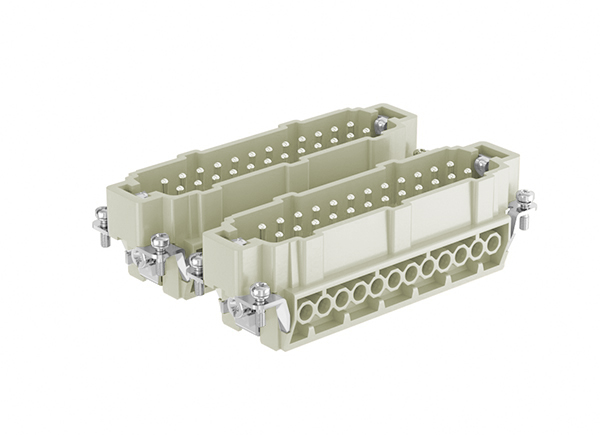

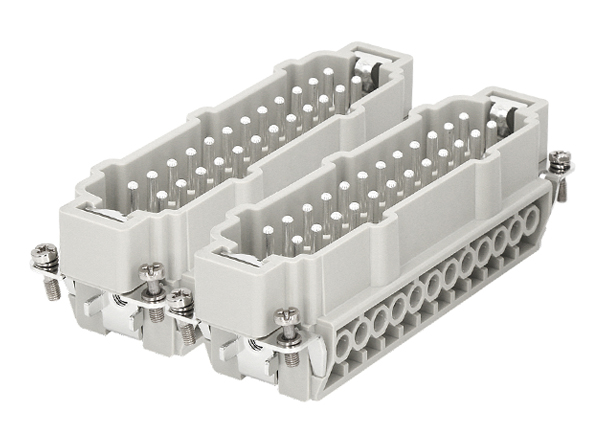

  Product Images
Male Inserts,Contacts 48+PE,Screw connection,16A 500V Male Inserts,Contacts 48+PE,Screw connection,16A 500V Male Inserts,Contacts 48+PE,Screw connection,16A 500V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.14-2.5mm² (26-14 AWG)
Tightening Torque: 0.5N.m
Stripping length:7.0mm
Terminal: Screw terminal

Eletrical Characteris tics:
Number of contacts: 48+PE
Rated current: 16A
Rated Voltage: 500V
Rated lmpulse Voltage: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
