Male Inserts,Contacts 8,Spring connection(quick),10A 250V KLS1-HD-008MQ All Products in HD Inserts Series

Male Inserts,Contacts 8,Spring connection(quick),10A 250V


  Product Images

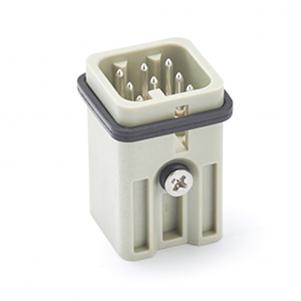

Male Inserts,Contacts 8,Spring connection(quick),10A 250V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.5-2.5mm² (20-14 AWG)
Terminal: Spring terminal (quick connection)

Eletrical Characteris tics:
Number of contacts: 8
Rated current: 10A
Rated Voltage: 50V~120V
Rated lmpulse Voltage: 4KV
Pollution Degree: 3
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
