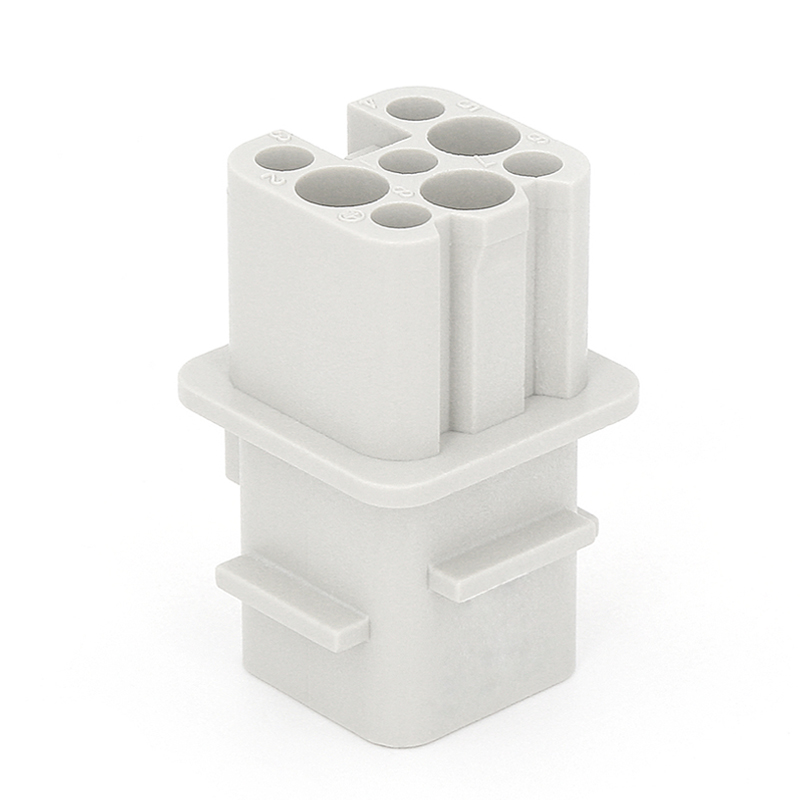

Female Inserts,Contacts 8,Crimp connection,10A 250V KLS1-HD-008FC |
 All Products in HD Inserts Series |
|
 |
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Hard-gold plated
Wire gauge: 0.14-2.5mm² (26-14 AWG)
Terminal: Crimp terminal
Tools:
Crimp Contact Tool: TL02G
Conatct Removal Tool: TL00
Eletrical Characteristics:
Number of contacts: 8
Rated Current: 10A
Rated Voltage: -50V / -250V
Rated lmpulse Voltage: 0.8KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 50V
Rated Voltage (Direct voltage): 120V
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min |
