H10A Classic compact Housing,Cable to Cable,High construction,Single Locking Latch KLS1-H10A-STH-1L |
 All Products in 10A Housing |
|
 |

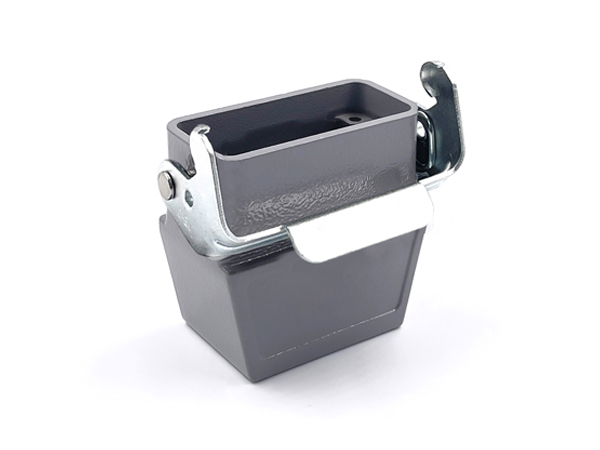

H10A Classic compact Housing,Cable to Cable,High construction,Single Locking Latch
Order Information:
L-KLS1-H10A-STH-1L-xx
L: RoHS
H10A: H10A series
Cable entry: STH=Cable to Cable,High construction
Locking type: 1L=1(Single) Locking Latch
Thread Sizes: xx: M20 / M25 / PG16 / PG21
Technical:
Material:
Body: Aluminium die-cast, powder-coated, RAL 7037(grey)
Hoods / Housings sealing: NBR
Temperature range: -40℃ ~ +125℃
Degree of protection: IP65 (acc.fo IEC 60529 for coupled connector)
Cable enfry: bottom entry
Thread size: M20 / M25 / PG16 / PG21
Loching element:
Locking type: single locking latch
Material: Metal+Nickel |
