H10A Classic compact Housing,Surface mounting,Side entry,Single Locking Latch KLS1-H10A-SF-1L |
 All Products in 10A Housing |
|
 |

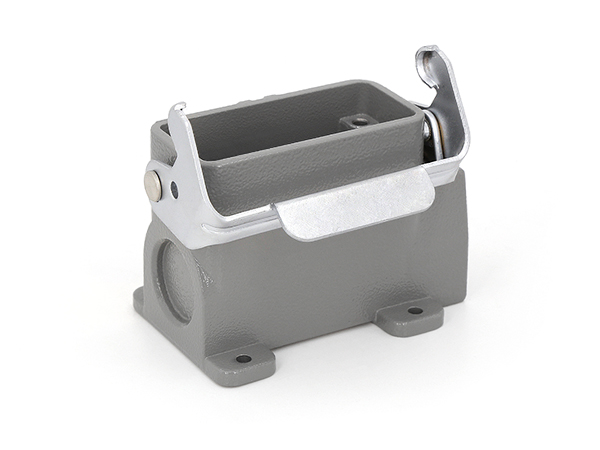

H10A Classic compact Housing,Surface mounting,Side entry,Single Locking Latch
Order Information:
L-KLS1-H10A-SF-1L(xx)-xx
L: RoHS
H10A: H10A series
Cable entry: SF=Surface mounting, Side entry
Locking type: 1L=1(Single) Locking Latch
xx: C: Plastic cover
MC: Metal cover
Thread Sizes: xx: M20 / 2M20 / M25 / PG16 / 2PG16 / PG21
Material:
Housing: Aluminium Die-Cast, UL94V-0
Surface: Powder-Coated
Colour: RAL 7037 (Grey)
Temperatures range: -40℃ ~ +125℃
Degree of protection: IP65 (acc.fo IEC 60529 for coupled Connector)
Locking Element:
Locking Type: Single Locking Latch
Material: Metal + Nickel
Cable entry: Side Entry
No.of Cable Entries:1 / 2
|
