LP-16 Plastic circular power connectors,IP67

LP series is one of best-selling series products made with high-performance engineering plastics. The quick plug design allows one hand plug/unplug. There are different sizes from M12 to M28 to support all kinds of connection types as: *male plug + female socket *female plug + male socket *male plug + female mating plug *female plug + male mating plug

Order information
KLS15-220D- LP16-XX F1
XX:  Number of 2 3 4 5 7 8 9 pins
F1: Female plug    M1 M2:  Male socket    T1:Docking male plug

Core tables
The Number of Pins	2PIN	3PIN	4PIN	5PIN	7PIN	8PIN	9PIN
The PIN map
Rated current	10A	10A	10A	5A	5A	5A	5A
Operating voltage	400V	400V	400V	250V	250V	250V	250V
Withstanding Voltage	2500V	2500V	2500V	1500V	1500V	1500V	1500V
Contact resistance	<2.5mΩ	<2.5mΩ	<2.5mΩ	<5.0mΩ	<5.0mΩ	<5.0mΩ	<5.0mΩ
Temperature rise	10A per contact at 30℃，12A……40℃，15A……50℃.
Contact diameter x number	Φ1.5x2	Φ1.5x3	Φ1.5x4	Φ1.0x5	Φ1.0x7	Φ1.0x8	Φ1.0x9
Insertion force	1.2N Max.	1.8N Max.	2.4N Max.	1.5N Max.	1.8N Max.	2.4N Max.	2.4N Max.
Durability	1700 times
Screw torque	42-53(N.m) torque wrench200(N.m)
Working temperature	-40℃～80℃
Vibration	Frequency: 5~200Hz,amplitude:5mm,Speed:10m/s.0.10us without instantaneous break
Impact resistance	294m/s2
Salt fog	PH6.5-7.2,NaCI,5% 48H
Cable specification	UL2464  24AWG*2C	UL2464  24AWG*3C	UL2464  24AWG*4C	UL2464  24AWG*5C	UL2464  24AWG*6C	UL2464  24AWG*7C	UL2464  24AWG*8C
Diameter range	Applicable scope of OD (1-Φ Φ8.5)mm with waterproof circle (Φ9mm,5mmΦ)
Protection level	IP67
Certification standards	Comply with the TUV and UL certification standards

TYPE	TYPE	PINS	ORDERING

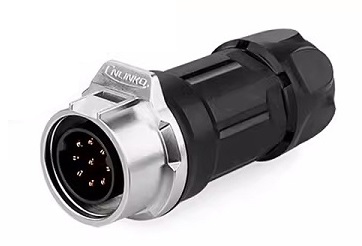

	Female plug	2,3,4,5,6,7,8 pins	F1
	Docking male plug	2,3,4,5,6,7,8 pins	T1

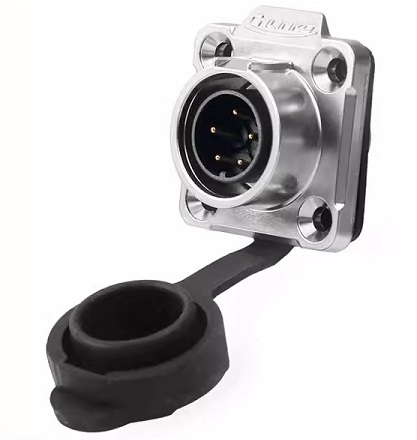

	Male socke	2,3,4,5,6,7,8 pins	M1

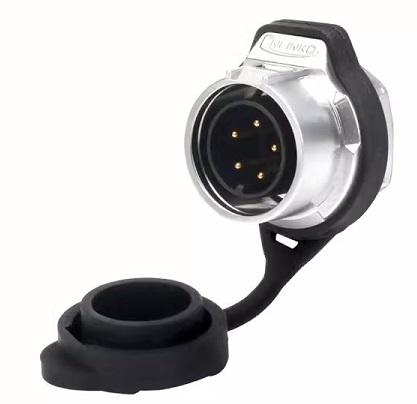

	Male socke	2,3,4,5,6,7,8 pins	M2
