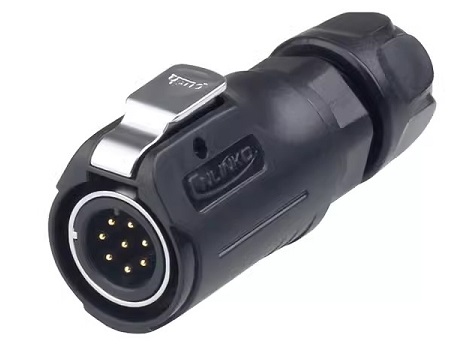

LP-12 Plastic circular power connectors,IP67

LP series is one of best-selling series products made with high-performance engineering plastics. The quick plug design allows one hand plug/unplug. There are different sizes from M12 to M28 to support all kinds of connection types as: *male plug + female socket *female plug + male socket *male plug + female mating plug *female plug + male mating plug

Order information
KLS15-220C- LP12-XX F1
XX:  Number of 2 3 4 5 6 7 8 pins
F1: Male plug    M1 M2:  Female socket    T1:Docking female plug

ore tables
The Number of Pins	2PIN	3PIN	4PIN	5PIN	6PIN	7PIN	8PIN
The PIN map
Rated current	5A	5A	5A	5A	5A	3A	3A
Operating voltage	125V	125V	125V	125V	125V	100V	100V
Withstanding Voltage	1500V	1500V	1500V	1500V	1500V	1000V	1000V
Contact resistance	<5.0mΩ	<5.0mΩ	<5.0mΩ	<5.0mΩ	<5.0mΩ	<10.0mΩ	<10.0mΩ
Temperature rise	5A per contact at 30℃，7A……40℃，10A……50℃。
Contact diameter x number	Φ1.0x2	Φ1.0x3	Φ1.0x4	Φ1.0x5	Φ1.0x6	Φ0.8x7	Φ0.8x8
Insertion force	0.6N Max.	0.9N Max.	1.2N Max.	1.5N Max.	1.8N Max.	2.1N Max.	2.4N Max.
Durability	1700 times
Screw torque	42-53(N.m) torque wrench200(N.m)
Working temperature	-40℃～80℃
Vibration	Frequency: 5~200Hz,amplitude:5mm,Speed:10m/s.0.10us without instantaneous break
Impact resistance	294m/s2
Salt fog	PH6.5-7.2,NaCI,5% 48H
Cable specification
Diameter range	Applicable scope of OD (1-Φ Φ6)mm with waterproof circle (Φ6mm,3mmΦ)
Protection level	IP67
Certification standards	Comply with the TUV and UL certification standards

TYPE	TYPE	PINS	ORDERING
	Male plug	2,3,4,5,6,7,8 pins	F1
	Docking female plug	2,3,4,5,6,7,8 pins	T1
	Female socke	2,3,4,5,6,7,8 pins	M1
	Female socke	2,3,4,5,6,7,8 pins	M2
