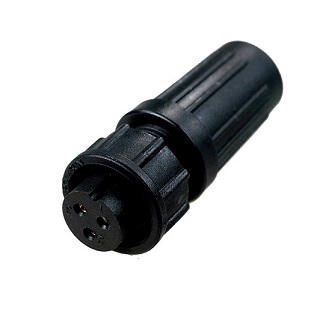

M16 waterproof Plastic circular connectors,IP67,Solder type,Quick lock

Order information
KLS15-249- XX   F1
XX:  Number of 2 3 4 5 6 7 8 10 12 pins
F1: Female Type   M1:  Male Type    T1::Docking Plug Male

Material:
Contact:　       Brass,Gold Plated/Silver plated
Connector Body:　 PA66+30%GF
Insert Body:  　   PA66+30%GF
Sealing:                   O-ring

Electrical & Mechanical data
Waterproof Rating:        IP67,Mated
Current Rating:             10A
Voltage Rating:             200V
Insulation resistance:    2000 MΩ Min.
Withstanding Voltage:   1500V AC
Cable OD:                      ∅3.5~6.5mm
Orientation:                  Straight
Mating Life:                  500 cycles Min.
Temperature Range:      -40°C ~ + 105°C

TYPE	TYPE	PINS	ORDERING
		2,3,4,5,6,7,8,9,10 pins	F1
		2,3,4,5,6,7,8,9,10 pins	T1
		2,3,4,5,6,7,8,9,10 pins	M1
