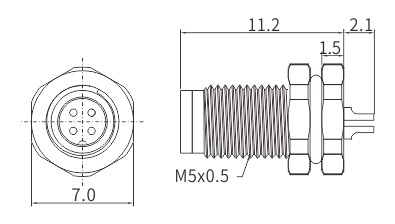

M5 Male Panel-mount, Solder Type, Front fastened,Un-shielded KLS15-M5A-L2 All Products in M5 circular connectors

M5 Male Panel-mount, Solder Type, Front fastened,Un-shielded


  Product Images
M5 Male Panel-mount, Solder Type, Front fastened,Un-shielded


  Product Information

Description
M5 circular connector is specially developed for the miniature sensor market and any application that requires multiple sensors within a very small area. The product line offers 3 and 4 Pins cable cord-sets and a range of panel-mounted receptacles. All connectors are either factory PVC/PUR over-molded or panel receptacles supplied with single wires or PCB solder pins, which is very compact and convenient for the application in narrow installment places.

● Cable plugs and panel receptacles are available
● Cable length base on customer requesting
● TPU over molded, IP67 protection degree
● 3, 4 poles per connector are available
● Operating voltage 60V, current 1A

Order information
L-KLS15-M5A-L2-03
M5: Screw type
A: A Coding
L2:   Solder ,Panel mount, Front lock,Male
Number of Contacts:03,04 pins

Product data
Contacts Poles: 03,04 Pins

Connector Gender: Male connector,Un-shielded
Current Rating: 1 A
Wire Gauge (size): 26AWG/ 0.14mm²
Voltage Rating: 60V
Wire Insulation: PVC
Keyway Coding: A-Coding
Straight/ 90° Angled: 180° Straight
Contacts Termination: Soldering
Temperature Rating: -20°C ~ + 80°C
Contacts Material: Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Inserts: TPU + GF
Sealing: O-Ring
Locking Screws: Brass with nickel plated
Contact Resistance: ≤10mΩ
Panel Cut Size: M7x0.75
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 100 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-105
