3P battery connector KLS1-PBC14 All Products in Laptop battery connectors

3P battery connector


  Product Images
3P battery connector 3P battery connector 3P battery connector 3P battery connector


  Product Information

Material
Contact material: Copper
Insulator material: LCP, UL 94V-0, BLACK COLOR.
Plating: Gold plating

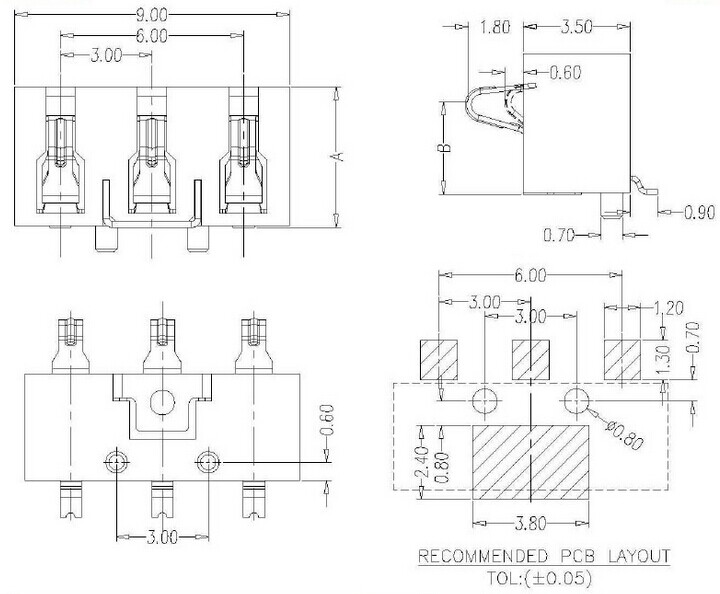

Height A size =4.6mm/5.4mm/7.2mm SIZE:

Picture Part No. PDF Description Order Qty. Time Order
KLS1-PBC14-4.6-Nbattery connector 3 pin,height 4.6mm,without post.
KLS1-PBC14-4.6-Wbattery connector 3 pin,height 4.6mm,with post.
KLS1-PBC14-5.4-Nbattery connector 3 pin,height 5.4mm,without post.
KLS1-PBC14-5.4-Wbattery connector 3 pin,height 5.4mm,with post.
KLS1-PBC14-7.2-Nbattery connector 3 pin,height 7.2mm,without post.
KLS1-PBC14-7.2-Wbattery connector 3 pin,height 7.2mm,with post.
