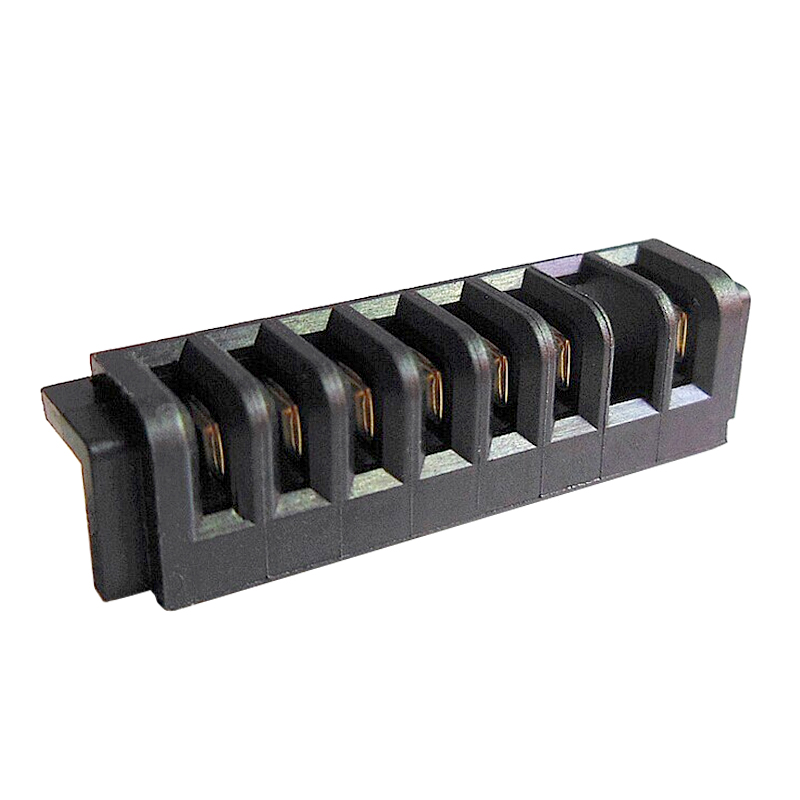

2.5mm pitch laptop battery connector female straight 3~11 pins,with post KLS1-LBC09 |
 All Products in Laptop battery connectors |
|
 |
Order Information
L-KLS1-LBC09-7P-W
Pin: No.of 3~11
W: With Post
Material:
Housing: Nylon 9T, UL94V-0
Contact: Phosphor Bronze
Contact Plated: Gold over Nickel or Tin
Electrical:
Current Rating: 7A
Instant Current: 10A
Contact Resistance: 3OmΩ Max.
Insulation resistance: 100MΩ Min
Dielectric Voltage: 500V
Operating Temperature Range: -40℃ ~ +105℃ |
