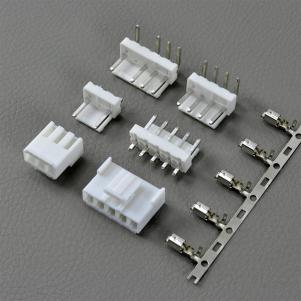

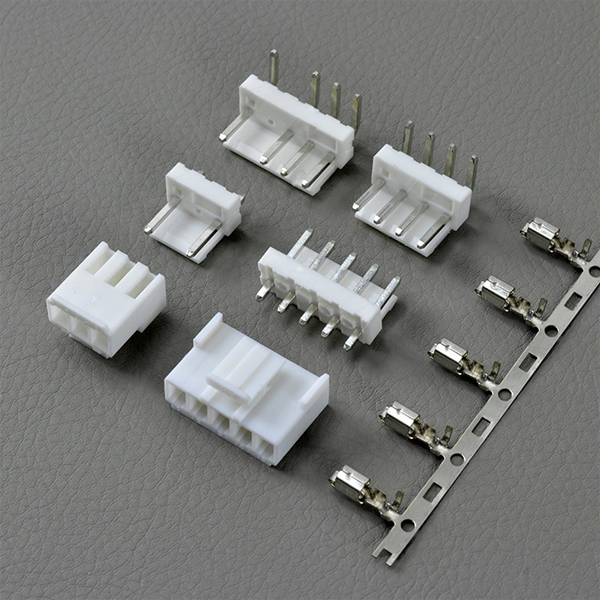

3.96mm VH Type Wire To Board Connector
Order information
L-KLS1-3.96A-XX-H
Pitch: 3.96mm
XX: No.of 02~16 pins
Type: H=Housing T=Terminal
S=Straight male pin R=Right angle male pin
VM=Vertical SMT Pin RM=Horizontal SMT Pin
Material:
Insulator: PA6T UL94V-0, Beige
Contacts: Brass, Tin Plated
Solder Tab: Brass, Tin Plated
Electrical Specification:
Poles: 02 to 16
Contact resistance: ≤20mΩ
Insulation resistance: ≥1000MΩ
Rated voltage: 250V AC DC
Rated current: 7.0A AC DC
Withstand Voltage: 1500V AC/minute
Temperature Range: -25℃ ~ +105℃
|
