2.00mm Pitch PH With Lock type Wire to Board Connector KLS1-XL2-2.00 All Products in 2.00mm Wire to board connectors & Wire to wire connectors

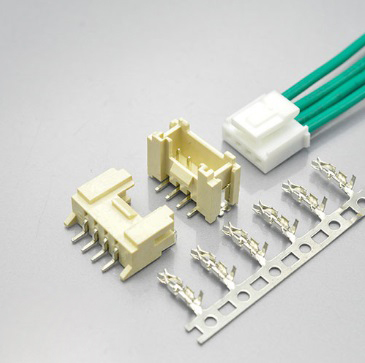

2.00mm Pitch PH With Lock type Wire to Board Connector


  Product Images
2.00mm Pitch PH With Lock type Wire to Board Connector 2.00mm Pitch PH With Lock type Wire to Board Connector 2.00mm Pitch PH With Lock type Wire to Board Connector 2.00mm Pitch PH With Lock type Wire to Board Connector


  Product Information
2.00mm Pitch PH With Lock type Wire to Board Connector

Order information
L-KLS1-XL2-2.00-XX-H
Pitch: 2.00mm
XX: No.of 02~16 pins
Type: H=Housing    T=Terminal
          S=Straight male pin      R=Right angle male pin
          VM=Vertical SMT Pin    RM=Horizontal SMT Pin

Material:
Insulator: PA66/ LCP, UL94V-0
Contact: Brass
Plating: Tin plated. Tin plated over Nickel

Electrical Characteristics:
Rated Current: 2.0AMP
Voltage rating: 250V AC, DC
Temperature range: -25℃ ~ +85℃
Insulator Resistance: 1000MΩ Min
Withstand Voltage: 1000V AC/DC
Contact Resistance: 20mΩ Max

Picture Part No. PDF Description Order Qty. Time Order
KLS1-XL2-2.00-T2.00mm Pitch PH With Lock Wire to Board Connector,2~16 pins,Terminal.
KLS1-XL2-2.00-XX-H2.00mm Pitch PH With Lock Wire to Board Connector,2~16 pins,Housing.
KLS1-XL2-2.00-XX-R2.00mm Pitch PH With Lock Wire to Board Connector,2~16 pins,Right angle male pin.
KLS1-XL2-2.00-XX-RM2.00mm Pitch PH With Lock Wire to Board Connector,2~16 pins,Horizontal SMT Pin.
KLS1-XL2-2.00-XX-S2.00mm Pitch PH With Lock Wire to Board Connector,2~16 pins,Straight male pin.
KLS1-XL2-2.00-XX-VM2.00mm Pitch PH With Lock Wire to Board Connector,2~16 pins,Vertical SMT Pin.
