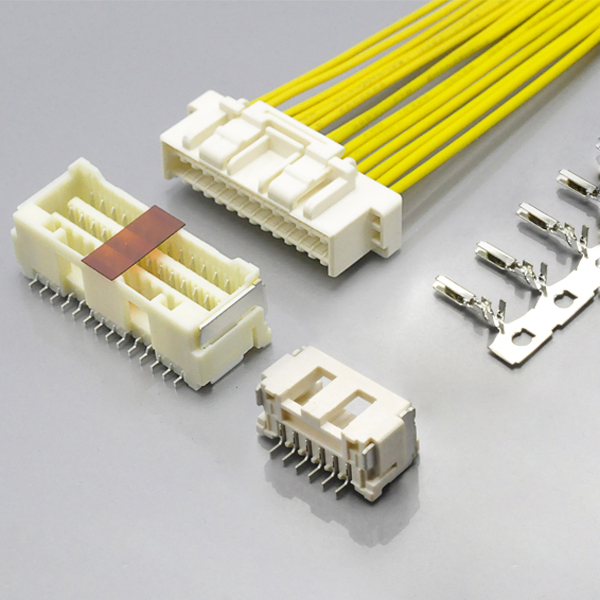

1.50mm Pitch 502578 502585 502584 502590 Wire To Board Connectors
Order Information
L-KLS1-MLD-2xXX-H
Pitch: 1.50mm
Row: 2=Double layer
XX: No.of 04~20 Pins
Type: H=Housing RM=Horizontal SMT Pin VM=Vertical SMT Pin
Material:
Housing: PBT/ PA9T/ LCP, UL94V-0
Color: Blank-Natural
Pin Header: Copper, Matte Tin Plating
Electrical:
Rated Current: 2A AC, DC
Rated Voltage: 100V AC, DC
Withstanding Voltage: 500V AC/minute
Insulator Resistance: 500MΩ Min
Contact Resistance: 20mΩ Max
After Environmental Testing: 40mΩ Max
Temperature range: -40°C ~ +105°C |
