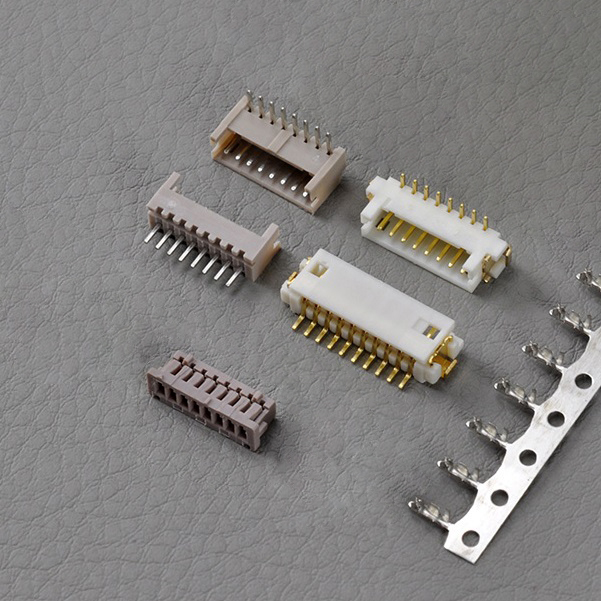

1.25mm Pitch DF13 type wire to board connector Single row
Order information
L-KLS1-XL4-1.25-1-XX-H
Pitch: 1.25mm
Pins: 1-Single layer
XX: No.of 02~15 pins
Type: H=Housing T=Terminal
S=Straight male pin R=Right angle male pin
VM=Vertical SMT Pin RM=Horizontal SMT Pin
Material:
Housing: PA66/PA6T, UL 94V-0, Gray/ Natural
Electrical Characteristics:
Current rating: 1A AC, DC
Voltage rating: 150V AC, DC
Temperature range: -35℃ ~ +85℃
Insulationresistance: 100MΩ Min.
Withstanding voltage: 500V AC minute
Contact resistance: 30mΩ Max.
