1.00mm Pitch SHU wire to board connector KLS1-XF4-1.00 All Products in 1.00mm Wire to board connectors

1.00mm Pitch SHU wire to board connector


  Product Images

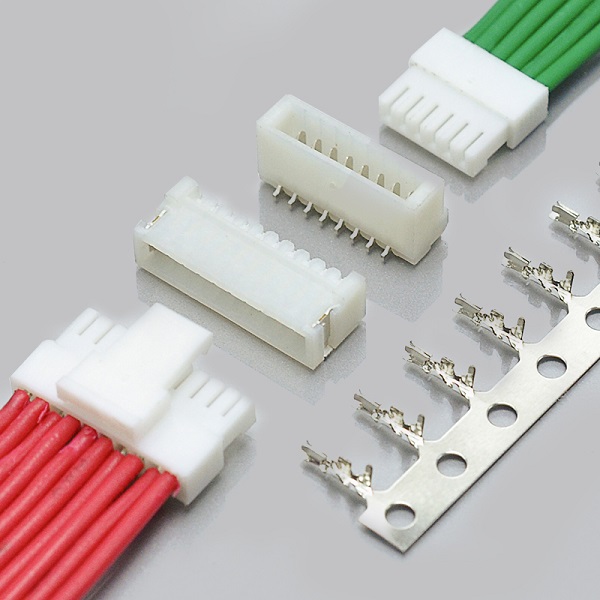

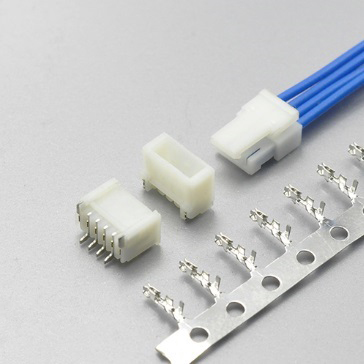

1.00mm Pitch SHU wire to board connector 1.00mm Pitch SHU wire to board connector


  Product Information
1.00mm Pitch SHU wire to board connector

Order information
L-KLS1-XF4-1.00-XX-H
Pitch: 1.00mm
XX: No.of 02~20 pins
Type: H/H2=Housing    T=Terminal
          VM=Vertical SMT Pin    RM=Horizontal SMT Pin

Material:
Housing: PA66/ PA9T, UL 94V-0
Colour: Natural

Electrical Characteristics:
Current rating: 1.0A AC,DC
Voltage rating: 50V AC,DC
Temperature range: -25℃ ~ +85℃
Insulationresistance: 100MΩ/Min.
Withstanding voltage: 500V AC/minute
Contact resistance: 20mΩ/Max.

Picture Part No. PDF Description Order Qty. Time Order
KLS1-XF4-1.00-T 1.00mm Pitch NSH wire to board connector,Terminal.
KLS1-XF4-1.00-XX-H 1.00mm Pitch NSH wire to board connector,2~20 pins,Housing.
KLS1-XF4-1.00-XX-H2 1.00mm Pitch NSH wire to board connector,2~20 pins,Housing.
KLS1-XF4-1.00-XX-RM 1.00mm Pitch NSH wire to board connector,2~20 pins,Horizontal SMT Pin.
KLS1-XF4-1.00-XX-VM 1.00mm Pitch NSH wire to board connector,2~20 pins,Vertical SMT Pin.
