0.80mm Pitch SUR wire to board IDC connector KLS1-XL1-0.80 All Products in 0.4mm/0.5mm/0.8mm Wire to board connectors

0.80mm Pitch SUR wire to board IDC connector

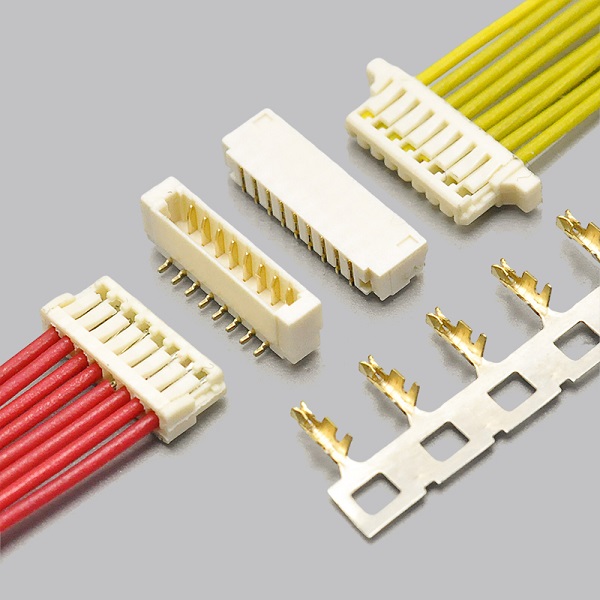

  Product Images
0.80mm Pitch SUR wire to board IDC connector 0.80mm Pitch SUR wire to board IDC connector 0.80mm Pitch SUR wire to board IDC connector 0.80mm Pitch SUR wire to board IDC connector


  Product Information

0.80mm Pitch SUR wire to board IDC connector

Order information:
L-KLS1-XL1-0.80-XX-H
XX: No.of 02~20 pins
Type: H=H1 H2-Housing    VM=Vertical SMT Pin
          RM=Horizontal SMT Pin    T=Terminal

Material:

Housing: Nylon66 or LCP, UL 94V-0
Contact: Phosphor Bronze
Plating: Plated Tin or Gold Flash Lead over Nickel
Applicable Wire Range: AWG#32

Electrical Characteristics:
Current rating: 0.5A AC, DC
Voltage rating: 30V AC, DC
Temperature range: -35℃ ~ +85℃
Insulationresistance: 100MΩ/Min.
Withstanding voltage: 200V AC minute
Contact resistance: 20mΩ/Max.

Picture Part No. PDF Description Order Qty. Time Order
KLS1-XL1-0.80-T0.80mm Pitch SUR wire to board IDC connector,Terminal.
KLS1-XL1-0.80-XX-H0.80mm Pitch SUR wire to board IDC connector,02~20 pins,Housing.
KLS1-XL1-0.80-XX-H10.80mm Pitch SUR wire to board IDC connector,02~20 pins,IDC Housing.
KLS1-XL1-0.80-XX-H20.80mm Pitch SUR wire to board IDC connector,02~20 pins,Housing.
KLS1-XL1-0.80-XX-RM0.80mm Pitch SUR wire to board IDC connector,02~20 pins,Horizontal SMT Pins.
KLS1-XL1-0.80-XX-VM0.80mm Pitch SUR wire to board IDC connector,02~20 pins,Vertical SMT Pins.
