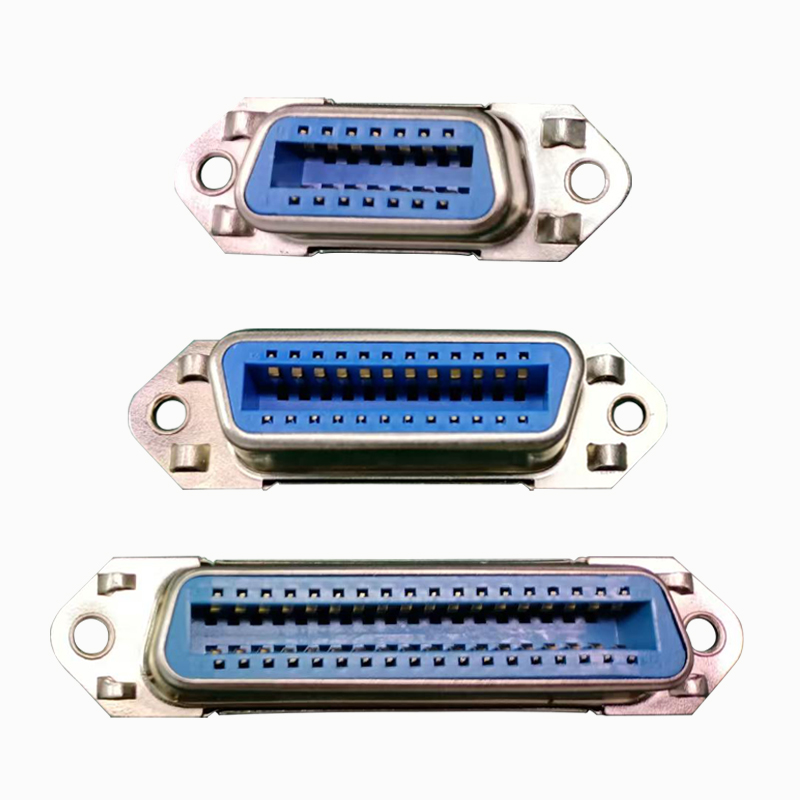

D-SUB Connector Solder Type 14 24 36 50 pins Male Female
Order Information:
L-KLS1-180-57B-XX-F-L
D-Sub Series: 180-57B
XX: No.of 14,24,36,50pins
Connector Type: F=Female M=Male
Housing Color: L=Blue B=Black
Material:
Insulator: PBT Glass Filled, UL94V-0
Contact: Phosphor Bronze Gold Flash Plated On Contact Area,
Tin Plated On Solder Tail, Ni Under Plated All Over.
Shell: Steel,Nickel Over Copper Plated
Hood: Steel,Nickel Over Copper Plated
Electrical:
Current Rating: 1.0 Amp
Insulaor Resistance: 1000MΩ Min(at 500V)
Contact Resistance: 25mΩ Max
Withstanding Voltage: 1000V AC/Minute
Temperature: -55℃ ~ +105°C |
