0.50mm Pitch M.2 NGFF connector 67 positions,Height 6.4mm,B E M Key
M.2 NGFF Connectors
M.2 next generation form factor (NGFF) connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
Order Information
KLS1-NGFF01-6.4-B-G1U
Height:6.4mm

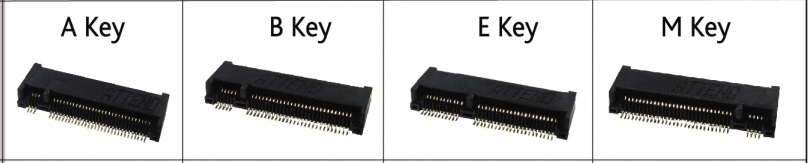

Key Type:B,E,M
Gold Plating:G1U-Gold 1u" G3U-Gold 3u" G30U-Gold 30u"
Material Specification:
Housing: LCP+30% G.F UL94 V-0.Black
Contact: Copper Alloy (C5210) T=0.12mm.
Leg: Copper Alloy (C2680) T=0.20mm.
Plating Specification:
Contact: see P/N.
Leg: Matte Tin 50μ" min. overall, Nickel 50μ" min. underplated.
Mechanical Performance:
Insertion force: 20N max.
Withdrawal force: 20N max.
Durability: 60 cycles min.
Vibration: No electrical discontinuity greater than 1u second. shall occur;
Mechanical shock: 285G half sine/6 axis. no electrical discontinuity greater than 1u second shall occur;
Electrical Performance:
Current Rating: 0.5A (per pin).
Voltage Rating: 50V AC (per pin).
LLCR: Contact 55mΩ max.(initial), 20mΩ max. change allowed (final).
Insulation Resistance: 5,000MΩ min. at 500V DC.
Dielectric withstand voltage: 300V AC/60s.
IR Reflow:
The peak temperature on board shall be maintained for 10 seconds at 260±5°C.
Operating temperature range: -40°C~85°C(without loss function). |
