You are here: Home > Products > Waterproof Connectors > Waterproof ethernet connectors
M24 Push pull Waterproof RJ45 connectors,IP67 KLS15-WEC45-07 All Products in Waterproof ethernet connectors

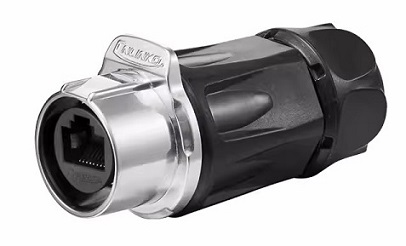

M24 Push pull Waterproof RJ45 connectors,IP67


  Product Images
M24 Push pull Waterproof RJ45 connectors,IP67 M24 Push pull Waterproof RJ45 connectors,IP67 M24 Push pull Waterproof RJ45 connectors,IP67 M24 Push pull Waterproof RJ45 connectors,IP67


  Product Information
M24 Push pull Waterproof RJ45 connectors,IP67

Material:
Plug Housing:PBT
Socket Housing:Zinc alloy
Body: High performance engineering plastics  UL94-V0/Zinc alloy
Contact: Phosphor bronze,gold plated
Sealing: silica gel

Electrical Characteristics:
Rated Current:             125 V AC,1.5A@25°C
Contact Resistance:      20mΩ Max.
Insulation Resistance:   500MΩ Min,100V DC/min
Withstand voltage:       1000V AC/1 minute
Waterproof level:  IP67
Life: 500 cycles Min.
Operating Temperature: -40ºC~+80ºC

Adapter wire gauge:
wire gauge:26~24AWG    /   0.15~0.2mm2
OD:5.0~7mm

TYPE SIZE Cable lenght ORDERING
1M,3M
5M,8M,10M.....
P1
1M,3M
5M,8M,10M.....
T1
S1
S2

Picture Part No. PDF Description Order Qty. Time Order
