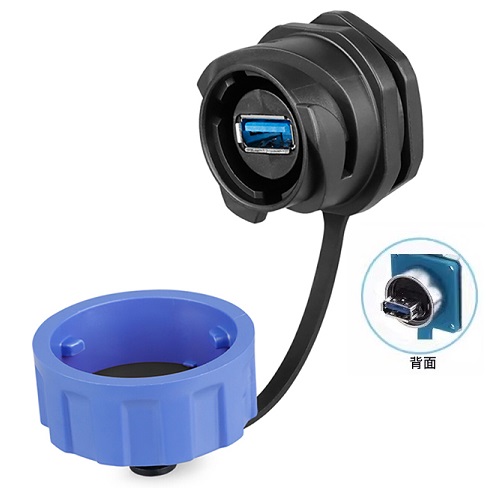

M24 Waterproof circular USB 3.0 connectors,IP67
Material:
Housing：PBT
Body: High performance engineering plastics UL94-V0
Contact: Phosphor bronze,gold plated
Sealing: silica gel
Electrical Characteristics:
Current Rating: 1.5 AMP
Dielectric withstanding rating: 500V R.M.S
Contact Resistance: 30mΩ Max.
Insulator Resistance: 1000MΩ Min.
Waterproof level: IP67
Life: 500 cycles Min.
Operating Temperature: -40ºC~+80ºC
Adapter wire gauge:
wire gauge:26~24AWG / 0.15~0.2mm2
OD:5.0~7mm
| TYPE |
SIZE |
Cable lenght |
ORDERING |
 |
 |
0.5M,1M,1.5M
2M,2.5M,3M..... |
P1 |
 |
 |
|
S1 |
 |
|
|
S2 |
 |
 |
|
S3 |
 |
|
|
S4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
