You are here: Home > Products > Switches > Rocker switches
Rocker Switch KLS7-001 All Products in Rocker switches

Rocker Switch


  Product Images
Rocker Switch Rocker Switch Rocker Switch Rocker Switch

Rocker Switch Rocker Switch Rocker Switch


  Product Information
Rocker Switch


MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated

ELECTRICAL
1.Electrical Rating:
10(4)A 250VAC T85
16(4)A 250VAC T125/55 1E4
15A 125V/7.5A 250AC
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance:<20mΩ
5.Insulation Resistance:>1000MΩ
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC; Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
------------------------------------------------------------------------

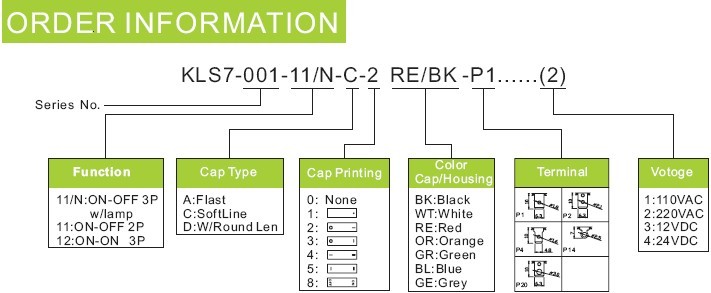

Picture Part No. PDF Description Order Qty. Time Order
KLS7-001-11-C-2-BK/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type C,2 Cap printing,Cap color black/Housing color black,Terminal P1 type.
KLS7-001-11-C-2-GE/GE-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type C,2 Cap printing,Cap color grey/Housing color grey,Terminal P1 type.
KLS7-001-11-C-2-WT/WT-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type C,2 Cap printing,Cap color White/Housing color white,Terminal P1 type.
KLS7-001-11-C-3-BK/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type C,3 Cap printing,Cap color black/Housing color black,Terminal P1 type.
KLS7-001-11-C-4-BK/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type C,4 Cap printing,Cap color black/Housing color black,Terminal P1 type.
KLS7-001-11-C-8-BK/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type C,8 Cap printing,Cap color black/Housing color black,Terminal P1 type.
KLS7-001-11-D-0-GR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type D,0 Cap printing,Cap color green/Housing color black,Terminal P1 type.
KLS7-001-11-D-0-RE/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type D,0 Cap printing,Cap color red/Housing color black,Terminal P1 type.
KLS7-001-11-D-0-WT/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 2P (Without Lamp),Cap type D,0 Cap printing,Cap color White/Housing color black,Terminal P1 type.
KLS7-001-11/N-A-2-BL/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type A,2 Cap printing,Cap color blue/Housing color black,Terminal P1 type.
KLS7-001-11/N-A-2-GR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type A,2 Cap printing,Cap color green/Housing color black,Terminal P1 type.
KLS7-001-11/N-A-2-OR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type A,2 Cap printing,Cap color orange/Housing color black,Terminal P1 type.
KLS7-001-11/N-A-2-RE/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type A,2 Cap printing,Cap color red/Housing color black,Terminal P1 type.
KLS7-001-11/N-C-2-BL/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type C,2 Cap printing,Cap color blue/Housing color black,Terminal P1 type.
KLS7-001-11/N-C-2-GR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type C,2 Cap printing,Cap color green/Housing color black,Terminal P1 type.
KLS7-001-11/N-C-2-OR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type C,2 Cap printing,Cap color orange/Housing color black,Terminal P1 type.
KLS7-001-11/N-C-2-RE/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type C,2 Cap printing,Cap color red/Housing color black,Terminal P1 type.
KLS7-001-11/N-D-2-BL/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type D,2 Cap printing,Cap color blue/Housing color black,Terminal P1 type.
KLS7-001-11/N-D-2-GR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type D,2 Cap printing,Cap color green/Housing color black,Terminal P1 type.
KLS7-001-11/N-D-2-OR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type D,2 Cap printing,Cap color orange/Housing color black,Terminal P1 type.
KLS7-001-11/N-D-2-RE/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-OFF 3P With Lamp,Cap type D,2 Cap printing,Cap color red/Housing color black,Terminal P1 type.
KLS7-001-12-C-2-BK/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (Without Lamp),Cap type C,2 Cap printing,Cap color black/Housing color black,Terminal P1 type.
KLS7-001-12/N-A-2-BL/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type A,2 Cap printing,Cap color blue/Housing color black,Terminal P1 type.
KLS7-001-12/N-A-2-GR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type A,2 Cap printing,Cap color green/Housing color black,Terminal P1 type.
KLS7-001-12/N-A-2-OR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type A,2 Cap printing,Cap color orange/Housing color black,Terminal P1 type.
KLS7-001-12/N-A-2-RE/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type A,2 Cap printing,Cap color red/Housing color black,Terminal P1 type.
KLS7-001-12/N-C-2-BL/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type C,2 Cap printing,Cap color blue/Housing color black,Terminal P1 type.
KLS7-001-12/N-C-2-GR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type C,2 Cap printing,Cap color green/Housing color black,Terminal P1 type.
KLS7-001-12/N-C-2-OR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type C,2 Cap printing,Cap color orange/Housing color black,Terminal P1 type.
KLS7-001-12/N-C-2-RE/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type C,2 Cap printing,Cap color red/Housing color black,Terminal P1 type.
KLS7-001-12/N-D-2-BL/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type D,2 Cap printing,Cap color blue/Housing color black,Terminal P1 type.
KLS7-001-12/N-D-2-GR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type D,2 Cap printing,Cap color green/Housing color black,Terminal P1 type.
KLS7-001-12/N-D-2-OR/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type D,2 Cap printing,Cap color orange/Housing color black,Terminal P1 type.
KLS7-001-12/N-D-2-RE/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON 3P (With Lamp),Cap type D,2 Cap printing,Cap color red/Housing color black,Terminal P1 type.
KLS7-001-13-C-6-BK/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON-OFF 3P (Without Lamp),Cap type C,6 Cap printing,Cap color black/Housing color black,Terminal P1 type.
KLS7-001-13-C-7-BK/BK-P1Rocker Switch,16A 250VAC/15A 125VAC,LxWxH Size:30.5x14x21.8mm,ON-ON-OFF 3P (Without Lamp),Cap type C,7 Cap printing,Cap color black/Housing color black,Terminal P1 type.
