Push Button Switch KLS7-PBS-004 All Products in Pushbutton switches

Push Button Switch


  Product Images
Push Button Switch Push Button Switch


  Product Information

 Push Button Switch
ELECTRICAL
Rating: 3A 125V AC ,1A 250V AC
Contact resistance: 20mΩ Max
Insulation resistance: 100MΩ/500VDC Min
Withstanding Voltage: AC1000V/1Min
Operating Temperature: -25ºC~+85ºC
Electrical life: 50000 Cycles

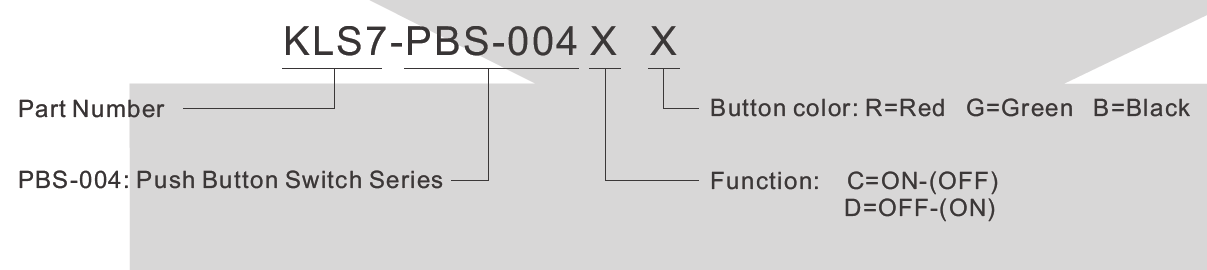

Picture Part No. PDF Description Order Qty. Time Order
KLS7-PBS-004C-BPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-(OFF),Black Round Cap.
KLS7-PBS-004C-GPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-(OFF),Green Round Cap.
KLS7-PBS-004C-RPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-(OFF),Red Round Cap.
KLS7-PBS-004C-YPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-(OFF),Yellow Round Cap.
KLS7-PBS-004D-BPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,OFF-(ON),Black Round Cap.
KLS7-PBS-004D-GPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,OFF-(ON),Green Round Cap.
KLS7-PBS-004D-RPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,OFF-(ON),Red Round Cap.
KLS7-PBS-004D-YPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,OFF-(ON),Yellow Round Cap.
