- • Detection range: 0-100%LEL combustible gas
- • Gas: natural gas, LPG, CO and alkanes ects flammable gas
- • Application: It is widely used in industrial occasion to detect the concentration of hydrogen, ethyne, gasoline, VOC such as alcohol, ketone, benzene.
- Principle Introduction:

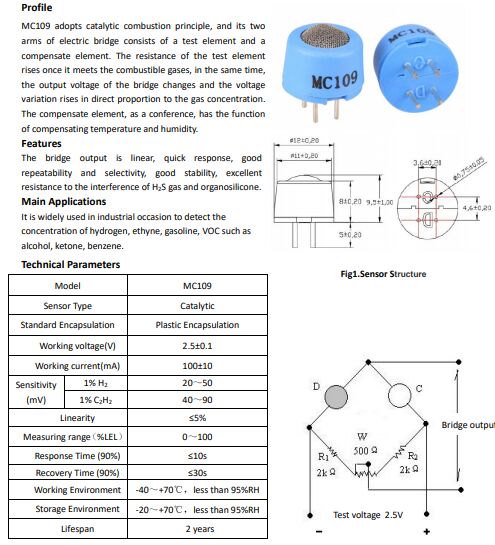

Research, design, and produce MC109 catalytic combustion/flammable gas sensor, 0~100%LEL detection range gas sensor.
MC109 adopts catalytic combustion principle, and its two arms of electric bridge consists of a test element and a compensate element. The resistance of the test element rises once it meets the combustible gases, in the same time, the output voltage of the bridge changes and the voltage variation rises in direct proportion to the gas concentration. The compensate element, as a conference, has the function of compensating temperature and humidity.
  ] |
